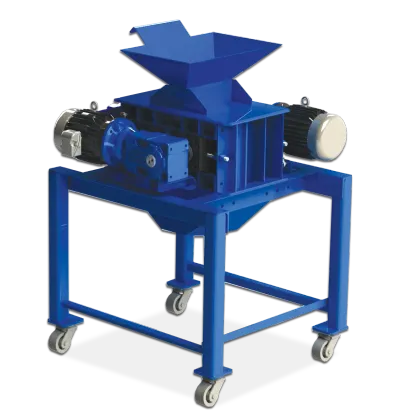

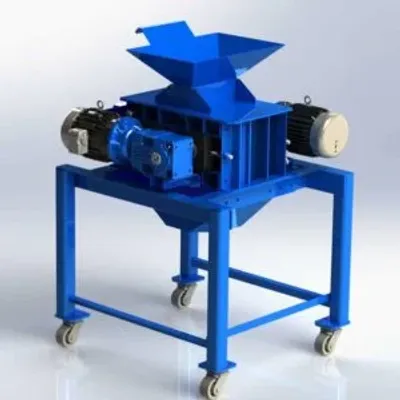

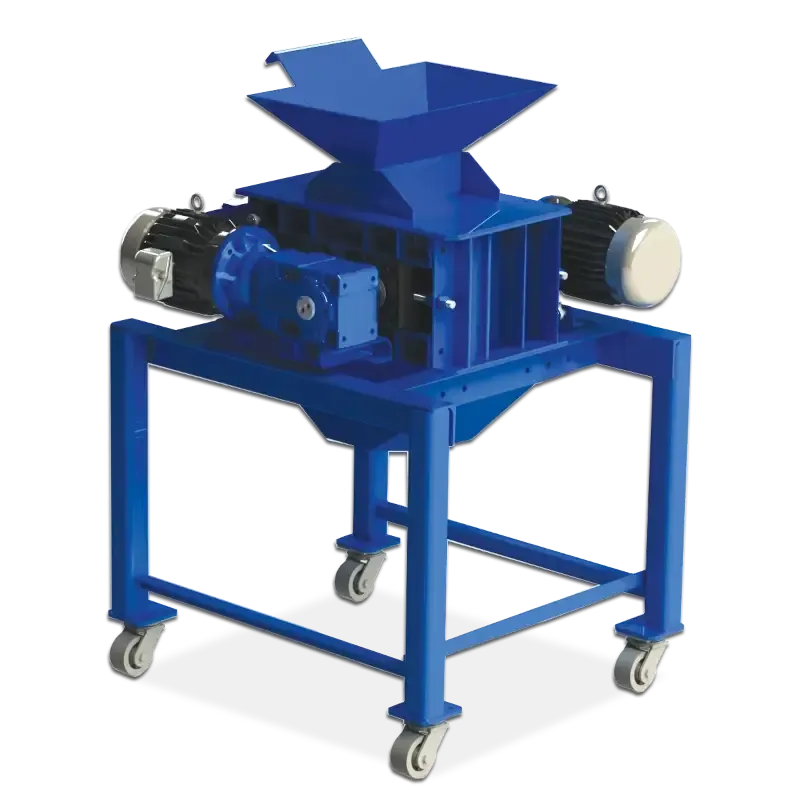

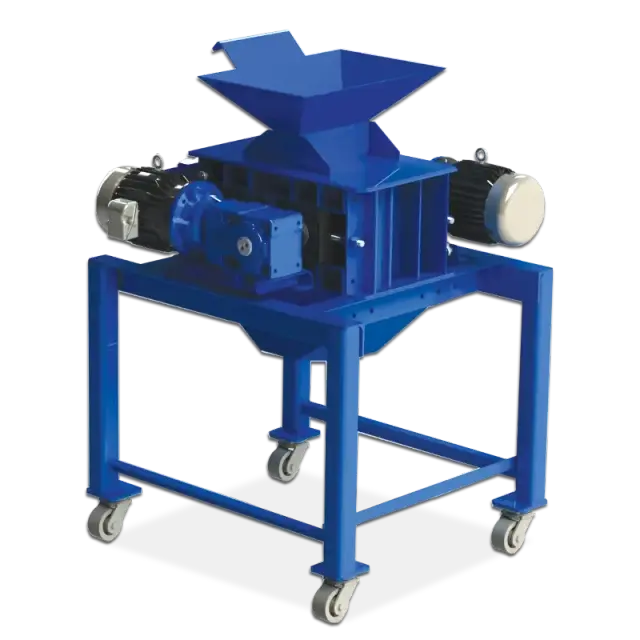

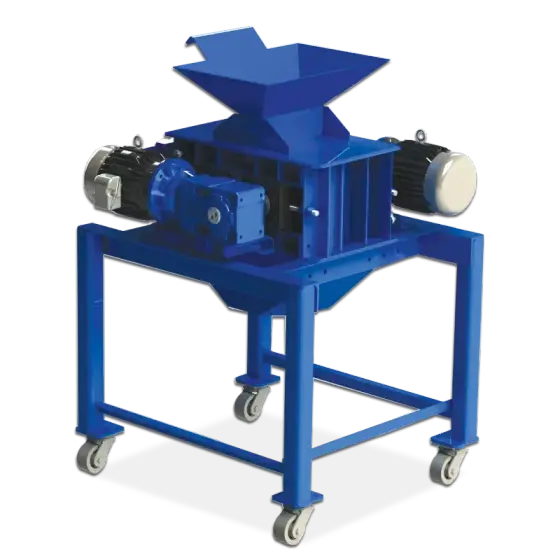

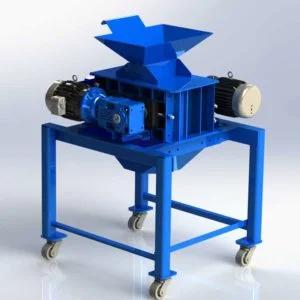

Supreme Roll Mill®
Twin rollers fracture solids to 4-70 mesh per pass
The SUPREME ROLL MILL® uses twin cylindrical rollers to fracture and reduce a wide variety of solids in a single efficient pass, providing dependable size reduction for chemical, food, and mineral processing.
Key Features
- Narrow Output Size Range
- Spring Release Roll Protection
- Highly Efficient Design
- Once-Through Milling Action
- Smooth or Corrugated Rolls
Established 1918 · Made in USA · Livingston, NJ
Product Overview
Description
- Construction Material
- Fabricated in carbon steel with chilled iron rolls; stainless steel and special alloys available upon request.
- Roll Configurations
- Available in smooth, serrated, or grooved roll styles to meet specific output requirements.
- Applications
- Ideal for processing coffee, food, fine chemicals, fertilizers, detergents, pharmaceuticals, minerals, cracking and flaking corn and grains, and precise reduction of polymers.
- Output Size Range
- Capable of producing output sizes from 4 to 70 mesh with an extremely narrow size distribution.
The Franklin Miller SUPREME ROLL MILLS comes in one, two and three high configurations. It is built with spring release roll protection that will allow the rolls to separate when hard foreign materials such as rocks, nuts, bolts, tools etc. pass through the mill. This allows for a much longer life due to the ability to avoid damage. The rolls are cast with magnesium, chrome, molybdenum and iron. Our rolls do not require tempering (flame hardening) which warps lower quality rolls and are thick enough to be re-corrugated 6 to 8 times before they must be replaced.
Options
Customize this product for your application

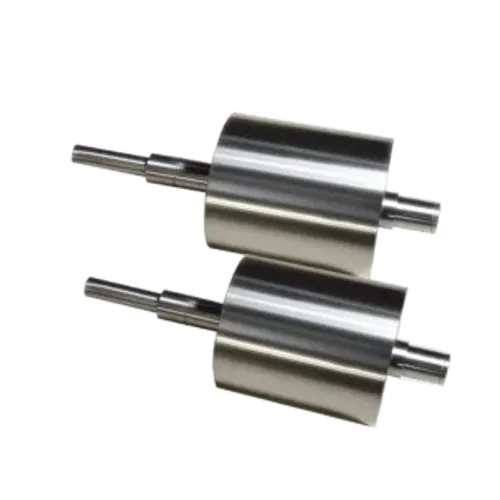

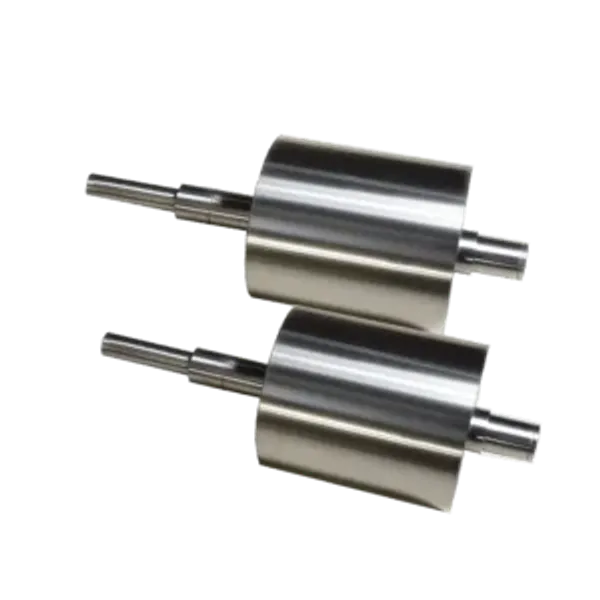

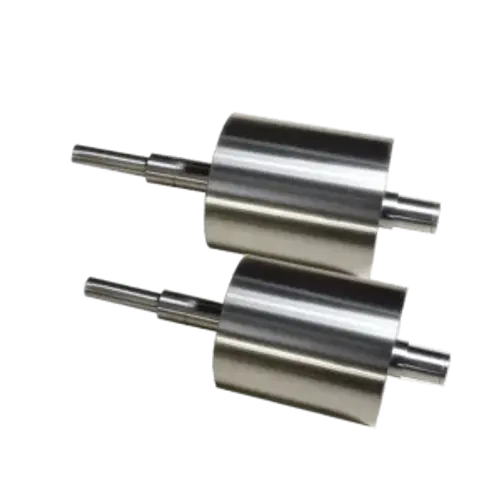

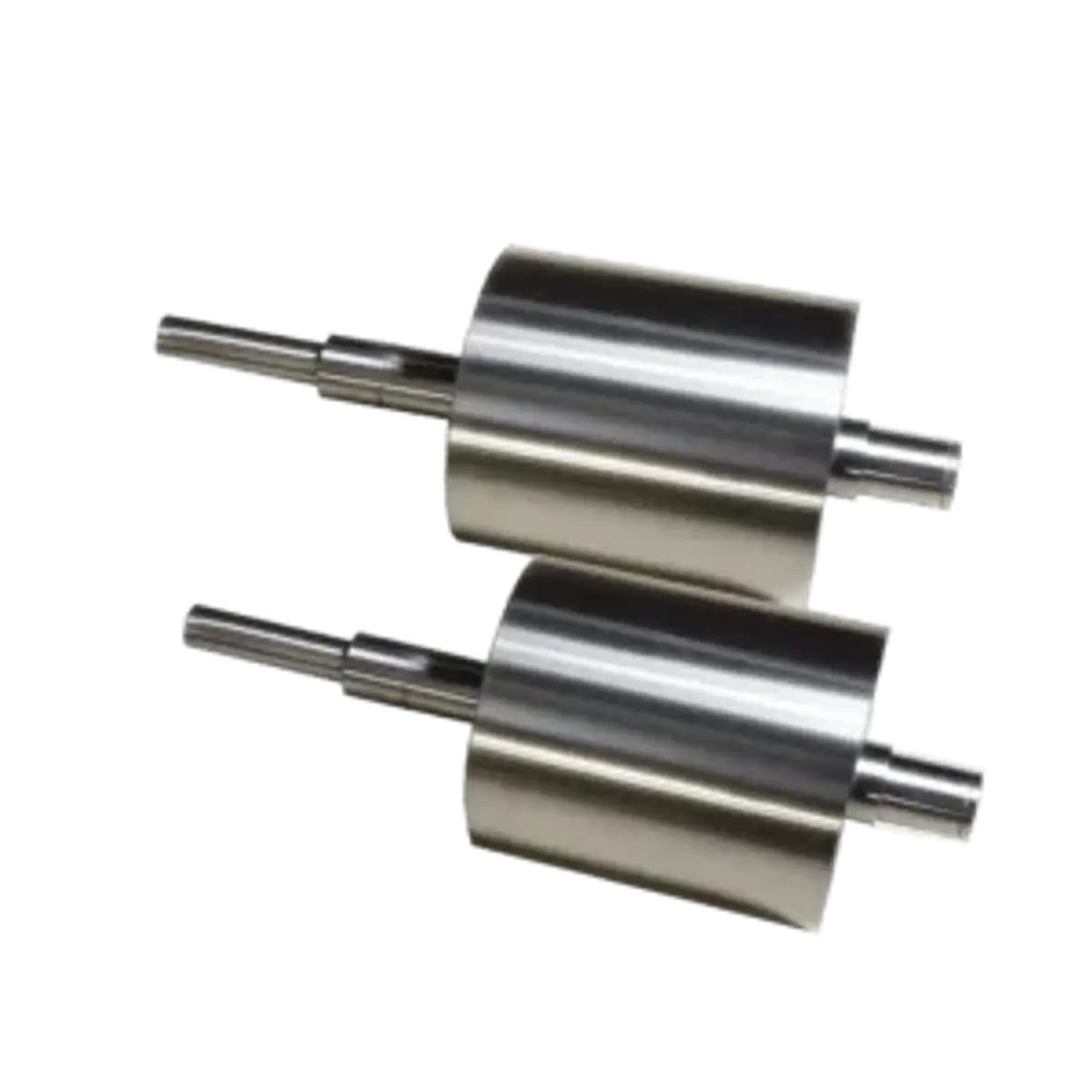

SUPREME ROLL MILLS are manufactured in a number of sizes and configurations to handle the most exacting size reduction requirements. Rolls can be supplied water cooled or heater. A variety of roll styles are available including smooth, serrated, and grooved. By varying the gap between the rolls and the pressure or speed, output mesh sizes are precisely controller. Units can be designed with easily removable hopper, inlet feeder, or they can be provided with inlet flanges for easy connections to chutes, kettles, or tanks. SUPREME ROLL MILLS are available in single, tandem, or triple pass configurations depending on reduction ratio required. These units may be supplied complete with pre-breaker where required.
Applications
Typical applications include coffee, food, fine chemicals, fertilizers, detergents, pharmaceuticals, minerals, cracking and flaking corn and grains, and precise reduction of polymers. Fabricated in carbon steel with chilled iron rolls, stainless steel, and in special alloys as required.
Technical Specifications
- Construction Material
- Fabricated in carbon steel with chilled iron rolls; stainless steel and special alloys available upon request.
- Roll Configurations
- Available in smooth, serrated, or grooved roll styles to meet specific output requirements.
- Applications
- Ideal for processing coffee, food, fine chemicals, fertilizers, detergents, pharmaceuticals, minerals, cracking and flaking corn and grains, and precise reduction of polymers.
- Output Size Range
- Capable of producing output sizes from 4 to 70 mesh with an extremely narrow size distribution.
