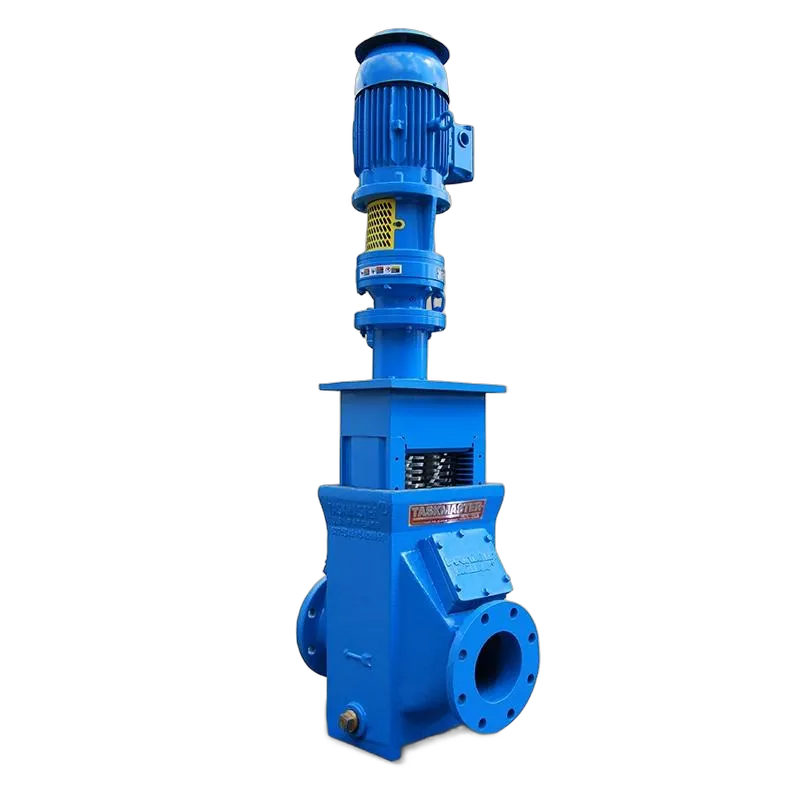

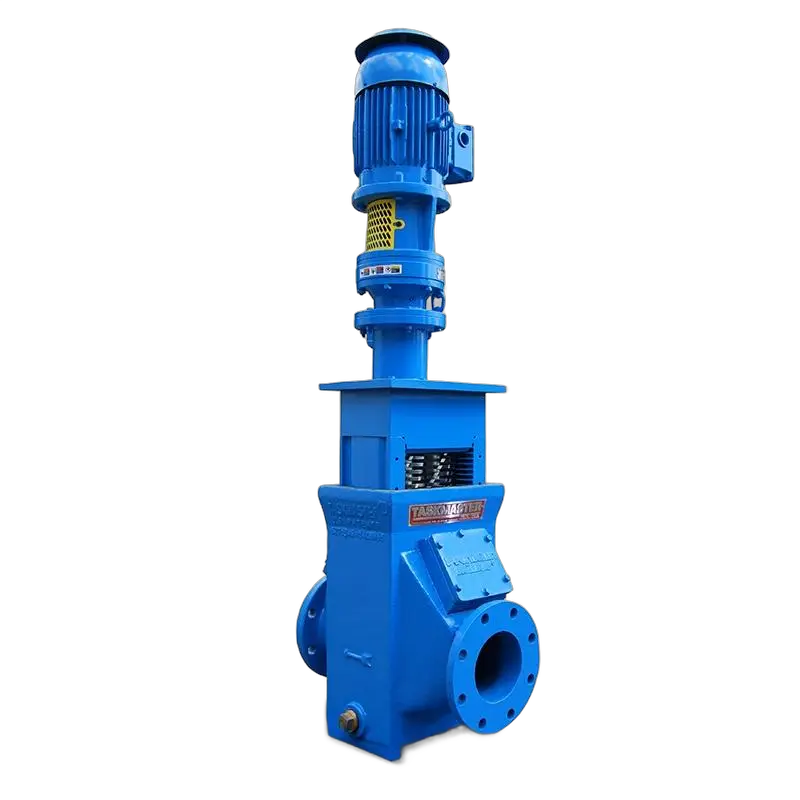

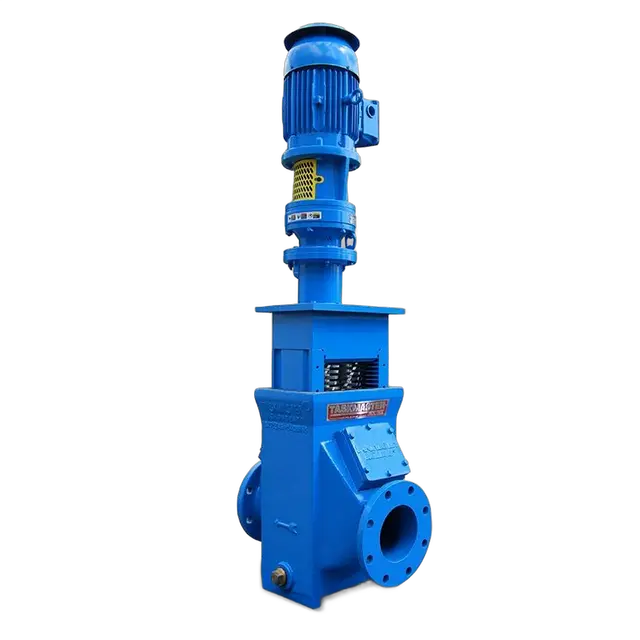

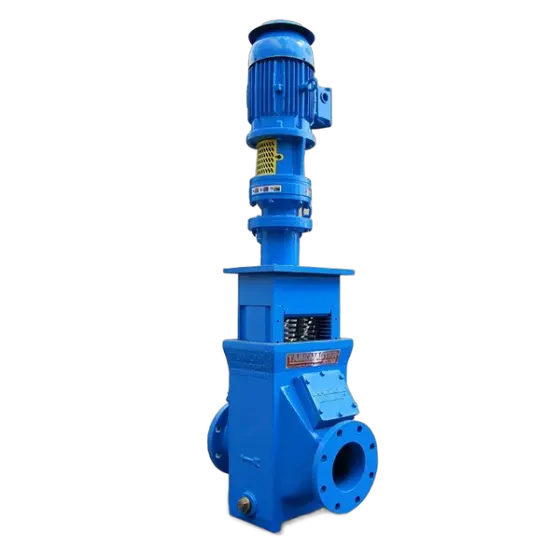

TASKMASTER® TM8500 Inline
The TASKMASTER® TM8500 Inline sewage grinder uses a twin-shaft mechanism and CUTTER CARTRIDGE® technology to continuously reduce solids within pressurized pipeline systems, protecting downstream pumps and equipment.
Key Features
- CUTTER CARTRIDGE® Technology
- Low-Speed High-Torque Action
- Pressure-Rated Pipeline Design
- Twin-Shaft Mechanism
Established 1918 · Made in USA · Livingston, NJ
- TM851204
- TM851206
- TM851208
- TM851610
- TM852412
Product Overview

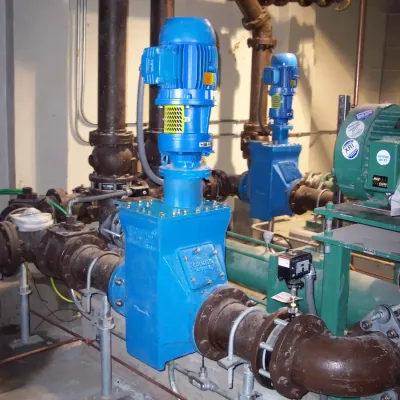

Description
- Cutter Technology
- CUTTER CARTRIDGE®
- Mounting Options
- Inline flange mount
- Construction Materials
- Hardened alloy steel cutters, optional stainless steel housing
- Features
- Direct inline installation, drop-in housing design, low headloss, high torque, protects downstream equipment

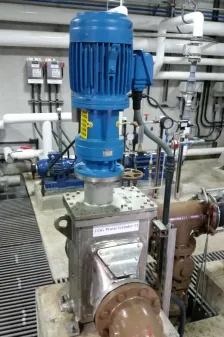

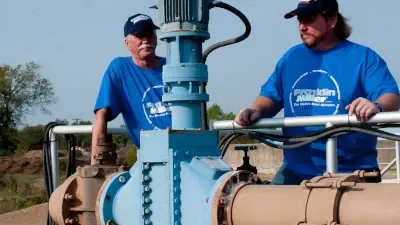

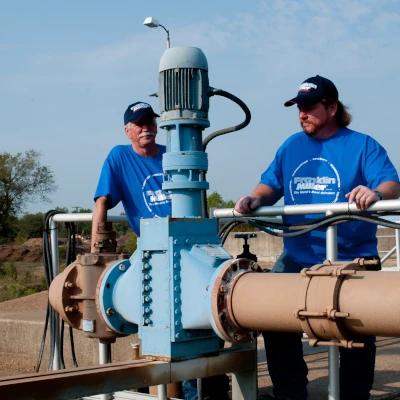

Two stacks of intermeshing cutters aggressively pull the solids in and finely reduce them. These grinders can be installed in gravity or pressurized, vertical or horizontal pipe systems, on the suction or positive side of a pump. The TASKMASTER® is provided with CUTTER CARTRIDGE® technology, wherein 6 cutter disks and 6 spacer disks are replaced by one-piece elements for far greater strength, fewer components, no stack loosening or stack re-tightening requirement.

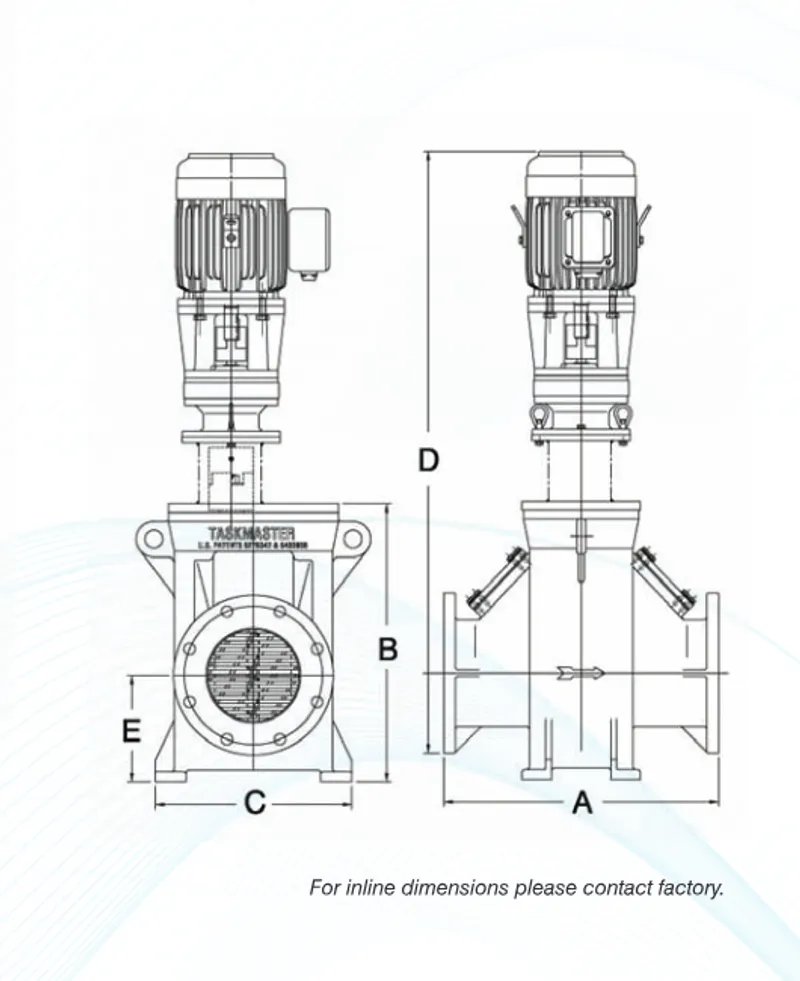

Dimensions
| Model No. | Flange | A | B | C | D | E | Flow GPM |
|---|---|---|---|---|---|---|---|
| TM851204 | 4″(100mm) | 19.25″(489mm) | 24.375″(619mm) | 16.625″(422mm) | 54″(1372mm) | 8.25″(209mm) | 400(25 l/s) |
| TM851206 | 6″(150mm) | 21.25″(540mm) | 23.375″(594mm) | 16.625″(422mm) | 53″(1346mm) | 8″(203mm) | 600(38 l/s) |
| TM851208 | 8″(200mm) | 23.25″(591mm) | 23.5″(597mm) | 16.625″(422mm) | 52″(1321mm) | 9″(229mm) | 800(50 l/s) |
| TM851610 | 10″(250mm) | 23.25″(591mm) | 27.375″(695mm) | 17.25″(438mm) | 56″(1422mm) | 10″(254mm) | 1000(63 l/s) |
| TM852412 | 12″(300mm) | 31.25″(794mm) | 34.25″(870mm) | 17.125″(435mm) | 62.625″(1591mm) | 12″(305mm) | 1200(75 l/s) |
| TM162012 | 12″(300mm) | 35.25″(895mm) | 36.75″(933mm) | 25.75″(654mm) | 79.5″(2019mm) | 13.5″(343mm) | 3200(202 l/s) |
| TM162016 | 16″(400mm) | 43.25″(1098mm) | 36.75″(933mm) | 25.75″(654mm) | 79.5″(2019mm) | 15.37″(391mm) | 3800(240 l/s) |
| TM163016 | 16″(400mm) | 43.25″(1098mm) | 46.75″(1187mm) | 25.75″(654mm) | 89.5″(2274mm) | 15.25″(387mm) | 5000(315 l/s) |
| TM163018 | 18″(450mm) | 47.25″(1200mm) | 46.75″(1187mm) | 25.75″(654mm) | 89.5″(2274mm) | 16.25″(413mm) | 6100(385 l/s) |
| TM163020 | 20″(500mm) | 49″(1245mm) | 46.75″(1187mm) | 25.75″(654mm) | 89.5″(2274mm) | 17.5″(445mm) | 6700(422 l/s) |
See It in Action

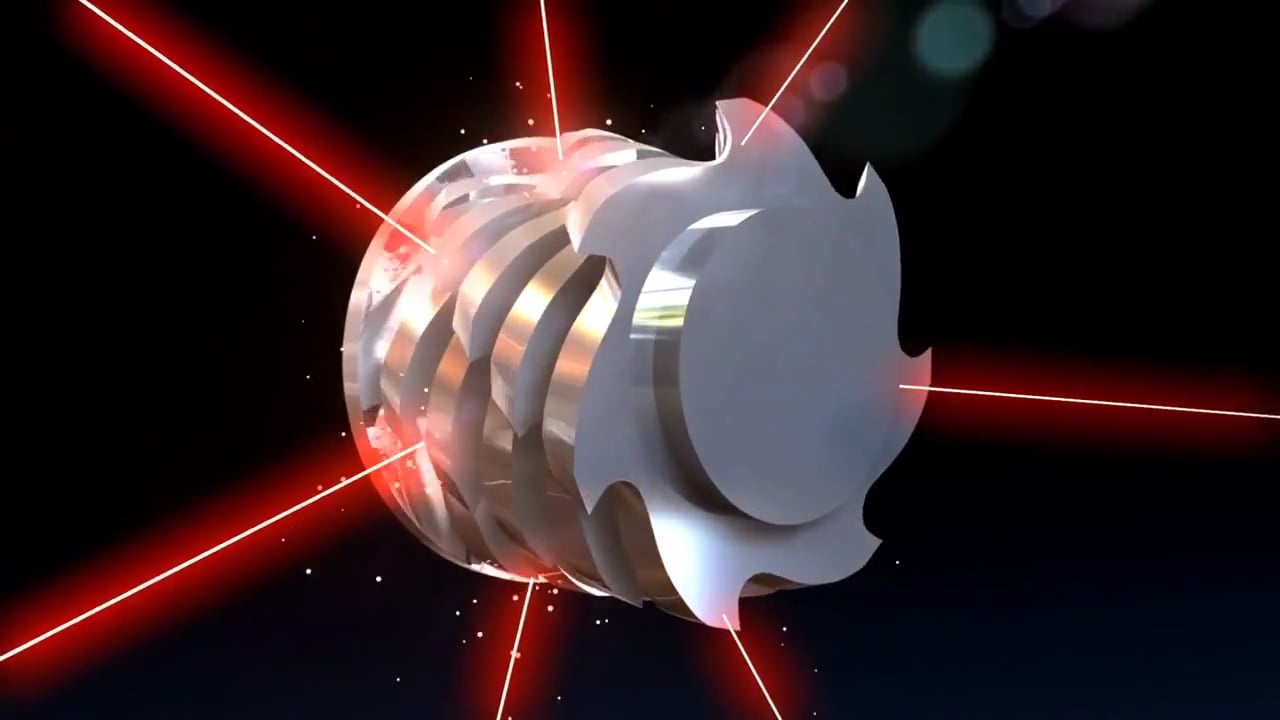

CUTTER CARTRIDGE Technology
The TASKMASTER TM8500 Inline grinder is provided with CUTTER CARTRIDGE technology, wherein six cutter disks are replaced by a one-piece element for far greater strength, fewer components, no stack loosening or stack retightening.
Technical Specifications
- Cutter Technology
- CUTTER CARTRIDGE®
- Mounting Options
- Inline flange mount
- Construction Materials
- Hardened alloy steel cutters, optional stainless steel housing
- Features
- Direct inline installation, drop-in housing design, low headloss, high torque, protects downstream equipment
Need Help Choosing the Right Solution?
Our engineers have over a century of experience matching equipment to applications. Tell us about your process and we'll recommend the best fit.
Applications & Usage
Where This Product Is Used
Inline Grinders
Franklin Miller Inline grinders are designed for a wide range of application include high flow, heavy solids, and fine grinding applications.
Meat Processing
Franklin Miller's equipment helps meat processing facilities manage high volumes of wastewater laden with fats, oils, grease, and solids.
Poultry Processing
Explore Franklin Miller advanced rotary drum screens and grinders, designed to optimize poultry processing efficiency, reliability, and performance.
Rendering
Franklin Miller grinders and crushers are used by rendering plants worldwide for size reduction processes. We have a full line of in-line and hopper fed units.
Wastewater Treatment
Franklin Miller manufactures a wide range of wastewater treatment equipment including grinders and screens. Our equipment is engineered for reliability and simplicity.
Wipes
Franklin Miller’s wipes grinders can handle most of the difficult waste including flushable wipes. Our grinders help prevent pumps from clogging worldwide.
