Sludge Grinders

Franklin Miller grinders play an important role in enhancing sludge processing and protecting sludge processing equipment. These grinders are used in wastewater treatment, industrial waste and septage handling applications.

Sludge processing is an operationally challenging part of the wastewater treatment process. Sludge is often difficult to process and tough on equipment. Pumps, centrifuges, belt filter presses, nozzles, digestors and trickling filters can have frequent maintenance problems and downtime even in plants with fine headworks screening.

Sludge pumps including progressive cavity (PC), plunger pumps, lobe pumps and centrifugal pumps in primary or secondary sludge lines can have significant maintenance issues and premature wear due to high levels of grit and foreign objects.

Pump manufacturers employ various techniques, materials and coatings to try to improve wear and performance in sludge applications but it is well known that the surest way to improve performance and up time is by installing a sludge grinder on the suction side of the pump.

When it comes to processing sludge, it is important to use a grinder built to the highest standards and with the design features and durability that are exclusive to Franklin Miller sludge grinders.

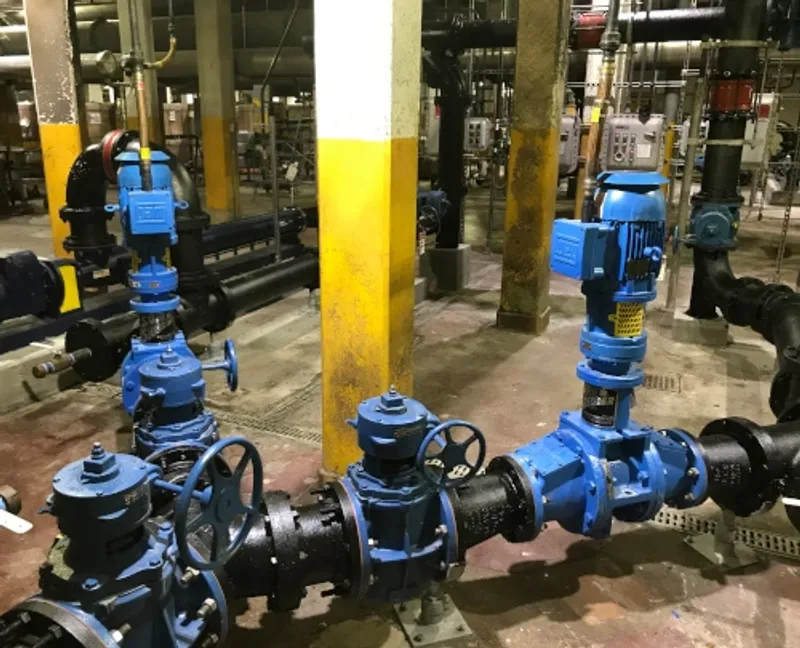

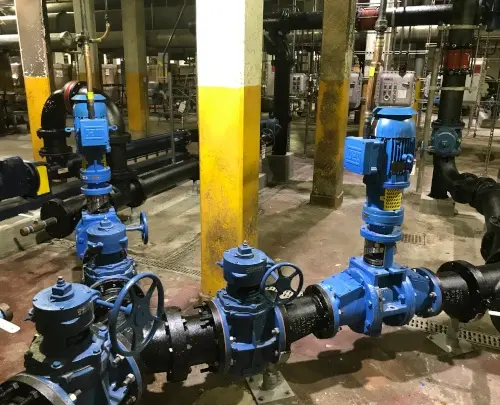

Franklin Miller sludge grinders are designed for a variety of flows. These unit are installed directly inline via standard flange connections and quickly go to work reducing over-sized solids that can cause jamming and damage to pumps, filter presses, nozzles and process equipment. Whether in a once through or recirculated configuration our grinders produce better digestion, less energy use, and longer useful life for downstream processes.

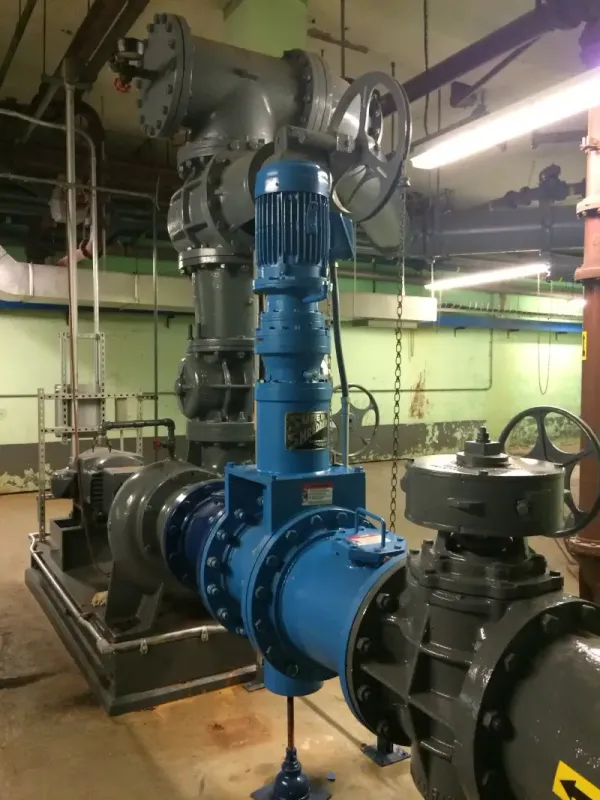

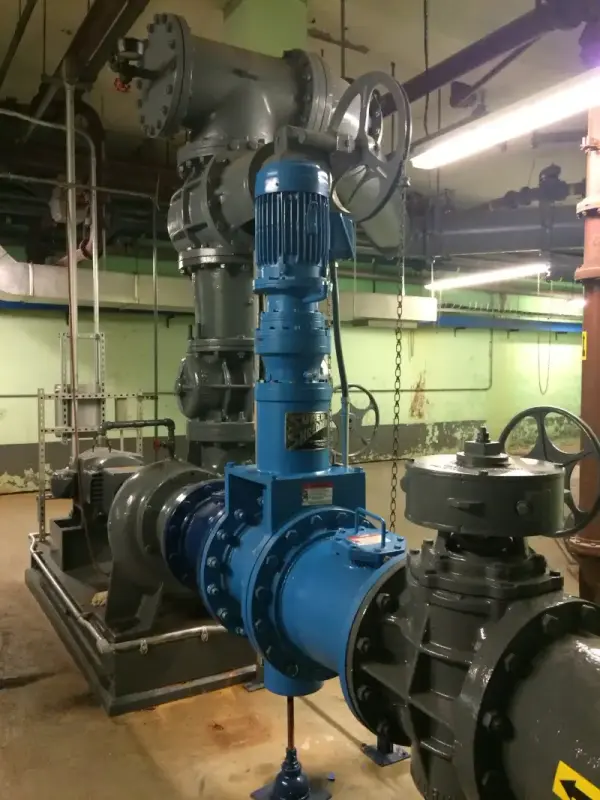

Super Shredder Installation

Super Shredder

Super Shredder InteriorThe SUPER SHREDDER® inline disintegrator reduces tough solids entrained in pipeline systems. This unit combines world-class size reduction capabilities with a streamlined, easy-to-maintain design that features only two working elements. The SUPER SHREDDER is ideal for applications requiring a heavy-duty size reduction processor that can handle high flows with minimal headloss.

The SUPER SHREDDER utilizes a low speed and high torque action to chop, grind and shred solids into fine bits that can be easily processed by downstream equipment. Its innovative open-center spherical rotor design maintains a high percentage of open area—making this unit practically invisible to the flow. In fact, it can handle higher flows than any other inline grinder available.

With only two cutting elements, SUPER SHREDDER construction and maintenance is greatly simplified. The cutters are constructed of stainless steel with a heavy abrasive-resistant fused coating precisely applied to all cutting surfaces. These corrosion-resistant cutters provide long dependable service without the embrittlement associated with hardened alloys. With its bidirectional cutters, wear is further reduced via automatic reversing of the unit’s direction of rotation. Two convenient cartridges house the unit’s seals and bearings. Each cartridge consists of a primary seal, a severe duty mechanical seal, oil seal, heavy duty tapered roller bearings and stub shaft. This seal design has proven highly dependable and easy to maintain.

Taskmaster Inline

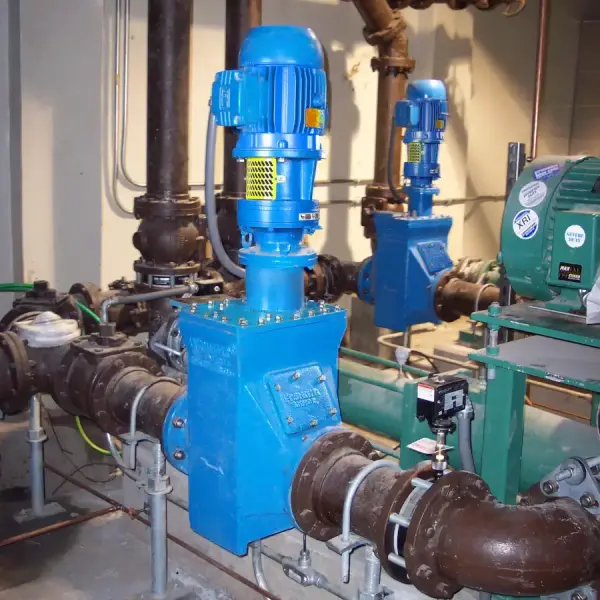

TM8500 InlineTASKMASTER® inline grinders employ a powerful twin-shaft mechanism and Cutter Cartridge® technology to reduce solids in pipeline systems. These versatile processors reduce rags, plastics, wood, tampons, sanitary napkins, sanitary wipes and more. They are invaluable in plant operations worldwide, keeping systems flowing, reducing pump downtime and protecting dewatering equipment, such as centrifuges, filter presses and more.

TASKMASTER inline grinders are available for 4” through 30” pipe sizes. These units feature severe duty mechanical seals, heat-treated hexagonal shafts and a direct, cycloidal gear drive. Each unit is supplied with an S260 Automatic Reversing Controller.

Taskmaster TT

For septage, a form of thickened sludge, it is especially important to employ a grinder and designed for this service and with the most durable construction because septage can contain grit, rocks and tramp material.  The Franklin Miller TASKMASTER® TT is built specifically for this purpose. This unit features a built in tramp trap housing for settling out tramp materials.
