TASKMASTER® Chips Shredding System
Securely destroys off-spec electronic chips and metal

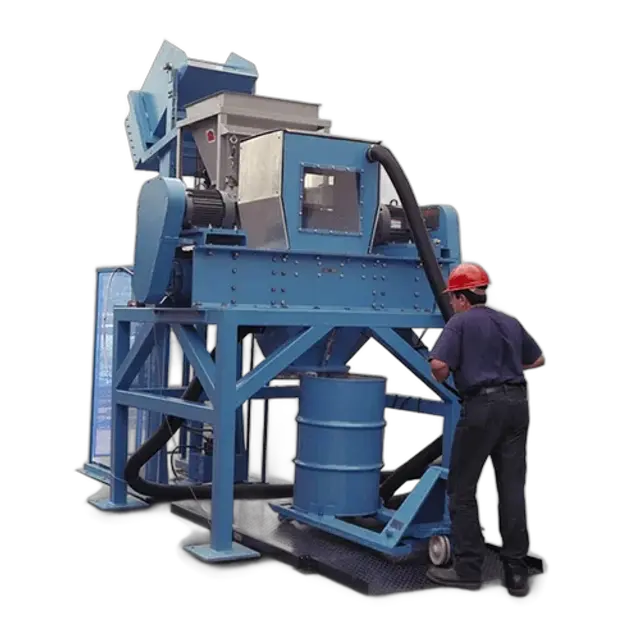

The TM2300 TASKMASTER® Chip Shredding System uses a heavy-duty twin-shaft shredder with tool-steel cutters to efficiently reduce metal chips and turnings, minimizing volume for handling and recycling.
Key Features
- Tool-Steel Cutters
- High Torque Design
- 1 Inch Thick Cam Cutters
- Twin-Shaft Shredding
Established 1918 · Made in USA · Livingston, NJ
Product Overview

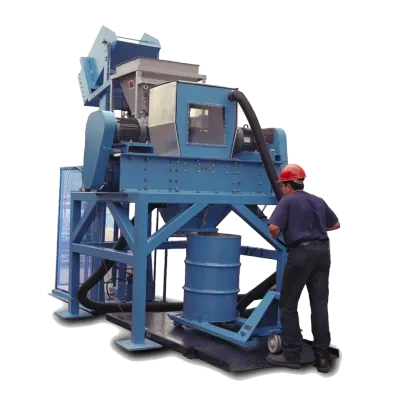

Description
- Construction Material
- Heavy-duty steel construction with special tool-steel cutters for enhanced durability.
- Cutting Mechanism
- Twin-shaft design with 1” thick (25 mm) cam cutters, providing high torque and efficient shredding.
- Design
- Low-speed, high-torque operation with direct gear drive, ensuring reliable performance and minimal maintenance.
- Safety Features
- Housing extends beyond cutters for enhanced safety and ease of installation in fully enclosed systems.

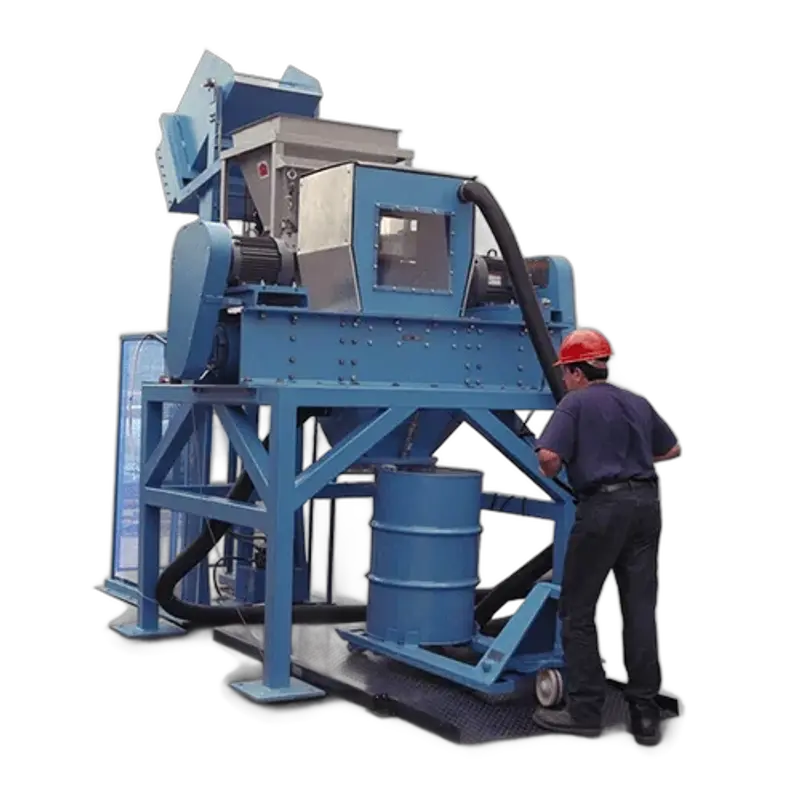

The TASKMASTER® TM2300 industrial shredder is a heavy-duty shredder designed to reduce a high volume of solids with its low speed, high torque design. This unit is built for the maximum level of performance and reliability using quality components and superior design. Its powerful, direct gear drive reduces the shaft speed and delivers high torque to the cutters for excellent cutting capacity. The unit can rip, tear and shred through a variety of tough solids reducing the volume to strips or chips ideal for further processing or economical disposal.
Options
Customize this product for your application
The TASKMASTER TM2300 industrial shredder is provided standard with 1” thick (25 mm) cam cutters. Other thicknesses and profiles can be provided. The TM2300 housing extends beyond the cutters for enhanced safety and ease of installation in fully enclosed systems.

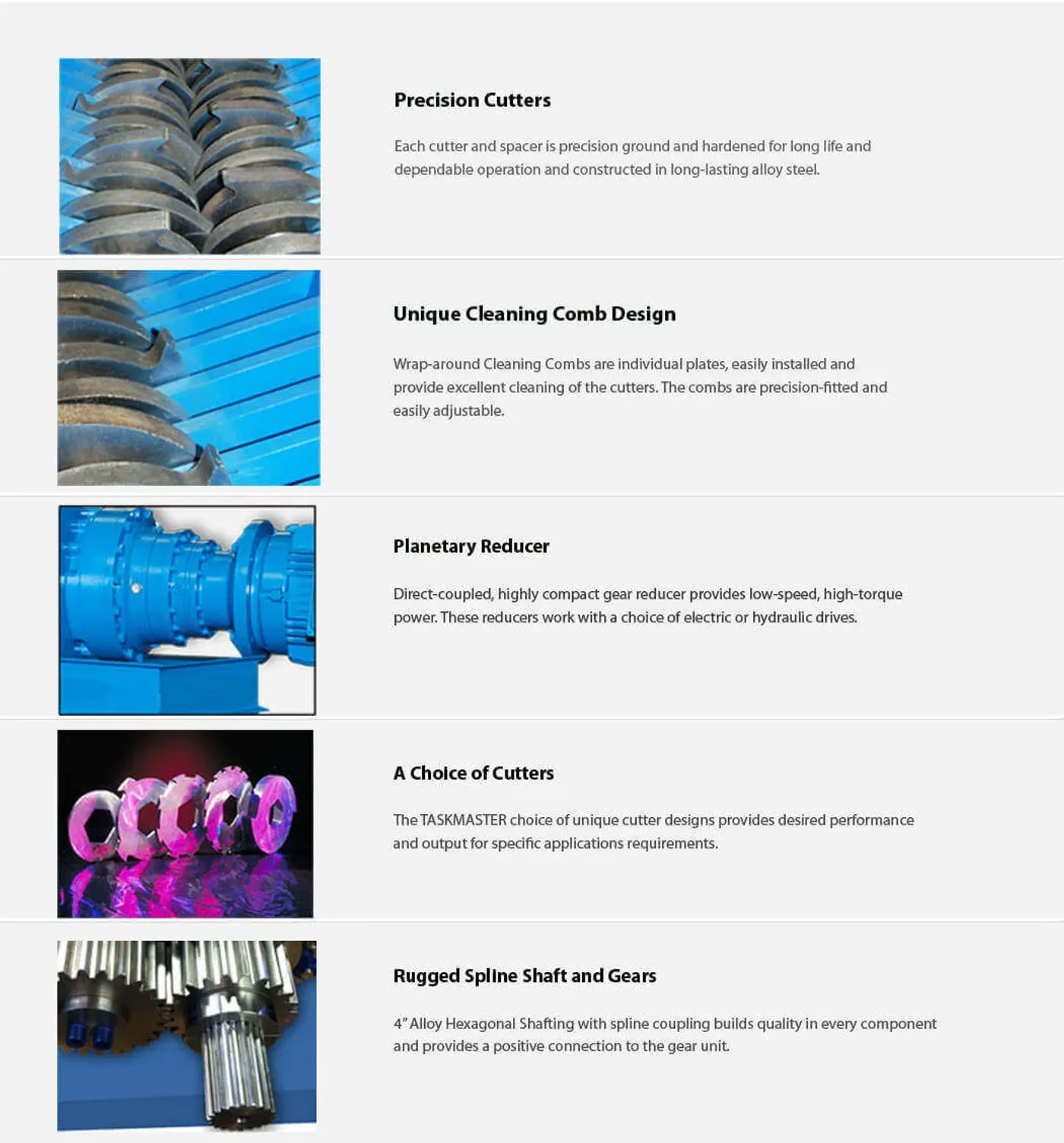

Features and Advantages

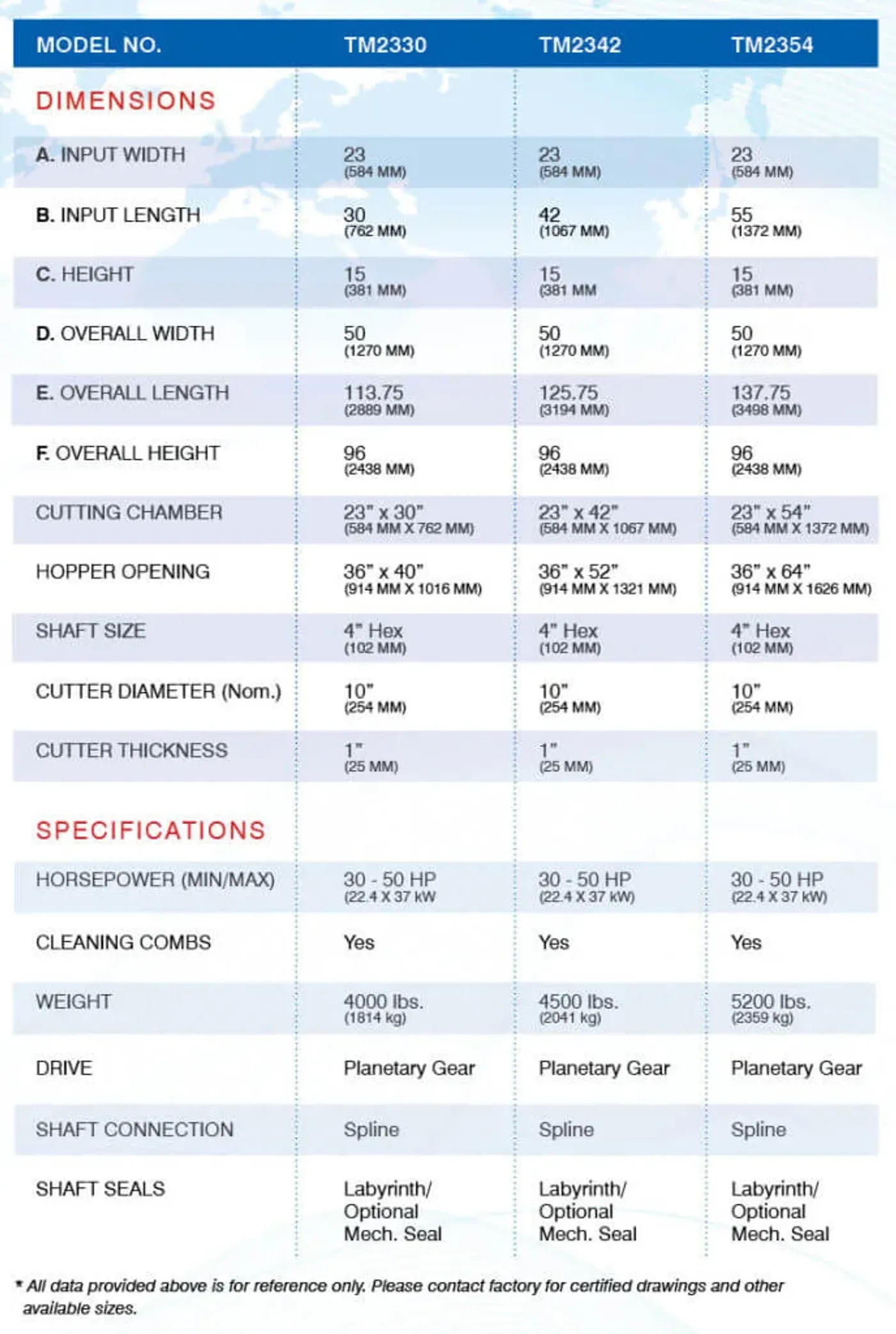

Dimensions
| MODEL NO. | TM2330 | TM2342 | TM2354 |
|---|---|---|---|
| Dimensions | |||
| A. Input Width | 23″(584mm) | 23″(584mm) | 23″(584mm) |
| B. Input Length | 30″(762mm) | 42″(1067mm) | 55″(1372mm) |
| C. Height | 15″(381mm) | 15″(381mm) | 15″(381mm) |
| D. Overall Width | 50″(1270mm) | 50″(1270mm) | 50″(1270mm) |
| E. Overall Length | 113.75″(2889mm) | 125.75″(3194mm) | 137.75″(3498mm) |
| F. Overall Height | 96″(2438mm) | 96″(2438mm) | 96″(2438mm) |
| Cutting Chamber | 23″ x 30″(584mm x 762mm) | 23″ x 42″(584mm x 1067mm) | 23″ x 54″(584mm x 1372mm) |
| Hopper Opening | 36″ x 40″(914mm x 1016mm) | 36″ x 52″(914mm x 1321mm) | 36″ x 64″(914mm x 1626mm) |
| Shaft Size | 4″ Hex(102mm) | 4″ Hex(102mm) | 4″ Hex(102mm) |
| Cutter Diameter (Nom.) | 10″(254mm) | 10″(254mm) | 10″(254mm) |
| Cutter Thickness | 1″(25mm) | 1″(25mm) | 1″(25mm) |
| Specifications | |||
| Horsepower (Min/Max) | 30–50 HP(22.4–37 kW) | 30–50 HP(22.4–37 kW) | 30–50 HP(22.4–37 kW) |
| Cleaning Combs | Yes | Yes | Yes |
| Weight | 4000 lbs.(1814 kg) | 4500 lbs.(2041 kg) | 5200 lbs.(2359 kg) |
| Drive | Planetary Gear | Planetary Gear | Planetary Gear |
| Shaft Connection | Spline | Spline | Spline |
| Shaft Seals | Labyrinth /Optional Mech. Seal | Labyrinth /Optional Mech. Seal | Labyrinth /Optional Mech. Seal |
Technical Specifications
- Construction Material
- Heavy-duty steel construction with special tool-steel cutters for enhanced durability.
- Cutting Mechanism
- Twin-shaft design with 1” thick (25 mm) cam cutters, providing high torque and efficient shredding.
- Design
- Low-speed, high-torque operation with direct gear drive, ensuring reliable performance and minimal maintenance.
- Safety Features
- Housing extends beyond cutters for enhanced safety and ease of installation in fully enclosed systems.
Need Help Choosing the Right Solution?
Our engineers have over a century of experience matching equipment to applications. Tell us about your process and we'll recommend the best fit.
More to Explore
Related Systems
TASKMASTER® Fish Shredding System
Twin-shaft grinders macerate fish waste for compliance

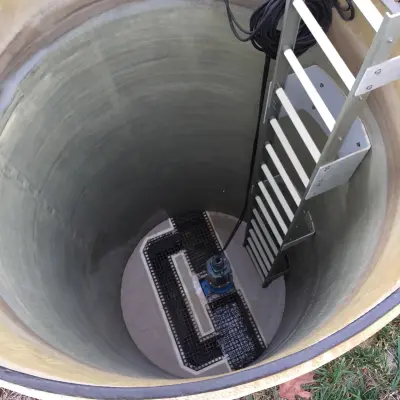

TASKMASTER® Manhole Grinder
Drop-in FRP manhole with grinder, installs in 3 hours

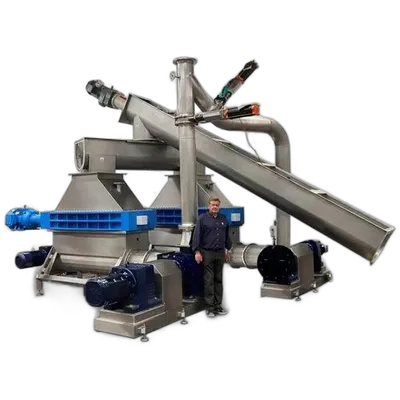

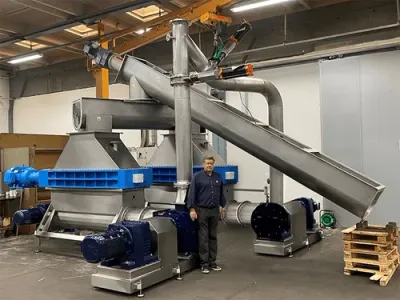

Customized Shredding Solutions
Purpose-built shredding systems for your exact process

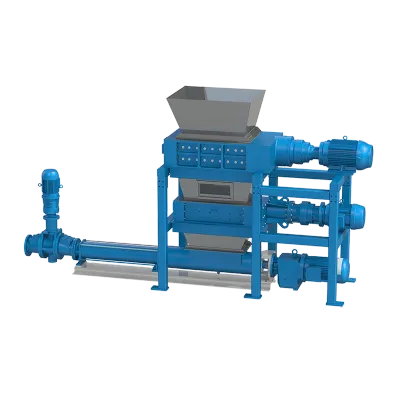

TASKMASTER® Food Waste Disposal System
