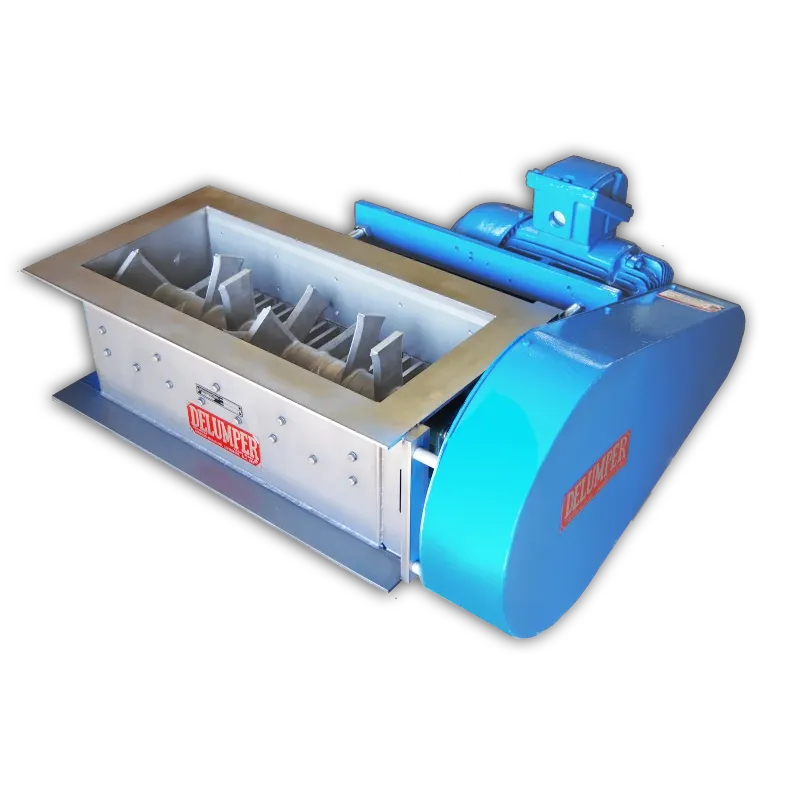

DELUMPER® LP
DELUMPER® LP crushers break down hard, soft, heat-sensitive, sticky, or wet agglomerates at high volume, delivering reliable lump reduction for demanding industrial applications.
Key Features
- Low Friction Cutter Design
- Individually Replaceable Teeth
- High Capacity Construction
- Handles Sticky & Abrasive Materials
Established 1918 · Made in USA · Livingston, NJ
Product Overview

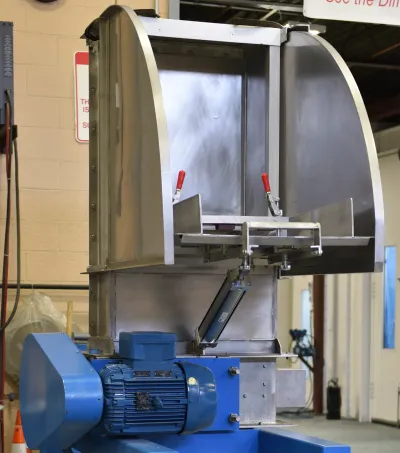

Description
- PropertyValue
- Extended cutting teeth rotating through a heavy bar cage
- Mounting Options
- Straight-through design suitable for inline installation
- Construction Materials
- Carbon steel, 304L or 316L stainless steel, and special alloys
- Features
- Handles sticky, tough, or abrasive materials; self-cleaning operation; optional hardfacing for extended cutter life
The Delumper LP crusher by Franklin Miller stands out in the industry for its exceptional versatility and robust construction. Designed to handle a wide range of materials, it efficiently processes everything from chemicals to food products. Its adaptability is showcased in its ability to manage wet, sticky, or dry substances, making it ideal for diverse industries. The crusher's availability in various sizes and configurations, including different shaft options, allows for customization to specific needs. With a capacity of up to 800 tons per hour, it's built for high efficiency. Its durable construction materials and optional features, like temperature suitability and different drives, add to its appeal. The Delumper LP is distinguished by its innovative features such as low friction cutter design and replaceable teeth, ensuring longevity and ease of maintenance.

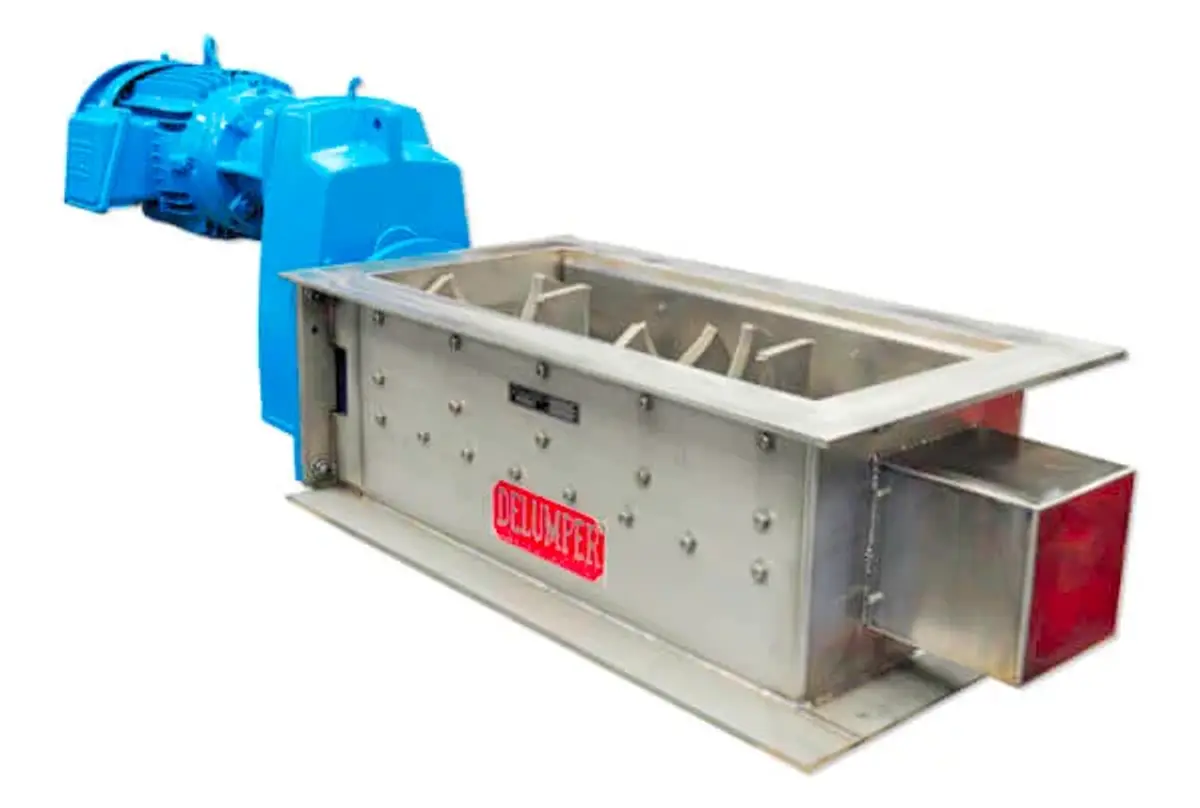

Options
Customize this product for your application
DELUMPER® LP models are provided in a number of configurations to fit many application requirements. Standard units are supplied with belt drive, foot mounted motor, guard and adjustable motor plate. Optional single or multiple direct driven units can be supplied. Units are available with or without stand and hopper. The DELUMPER® LP is available in carbon steel, T304L and T316L stainless steel construction, as well as other special alloys. These units can be supplied for high temperature operation. Any Franklin Miller DELUMPER® can be supplied as part of a complete engineered system including automatic controls, conveyors and other devices to meet your application requirement.
A unique hardfacing option is available for extended cutter life under abrasive conditions.
Dimensions
| Model # | Shaft No. | Input Width | Input Length | Overall Width | Length | Height | Typ HP |
|---|---|---|---|---|---|---|---|
| DC1075LP | 1 | 14″(356mm) | 16″(406mm) | 32″(813mm) | 36″(914mm) | 13″(330mm) | 10 HP(7.50 kW) |
| DC2085LP | 1 | 14″(356mm) | 31″(787mm) | 51″(1295mm) | 40″(1016mm) | 13″(330mm) | 15 HP(11.18 kW) |
| DC2020LP | 1 | 20″(508mm) | 20″(508mm) | 44″(1118mm) | 50″(1270mm) | 20″(508mm) | 25 HP(18.64 kW) |
| DC1818LP | 2 | 18″(457mm) | 18″(457mm) | 22″(559mm) | 61″(1549mm) | 12″(305mm) | 10 HP(7.50 kW) |
| DC2830LP | 2 | 28″(711mm) | 30″(762mm) | 33.5″(851mm) | 88″(2235mm) | 13″(330mm) | 15 HP(11.18 kW) |
| DC2840LP | 2 | 28″(711mm) | 40″(1016mm) | 36.9″(935mm) | 130″(3302mm) | 15″(381mm) | 25 HP(18.64 kW) |
| DC3456LP | 2 | 34″(864mm) | 58″(1473mm) | 54.5″(1384mm) | 201″(5095mm) | 18″(457mm) | 25 HP(18.64 kW) |
| DC4230LP | 3 | 42″(1067mm) | 30″(762mm) | 49″(1245mm) | 97″(2464mm) | 15″(381mm) | 15 HP(11.18 kW) |
| DC4240LP | 3 | 42″(1067mm) | 40″(1016mm) | 49″(1245mm) | 107″(2718mm) | 15″(381mm) | 15 HP(11.18 kW) |
| DC4856LP | 3 | 48″(1219mm) | 56″(1422mm) | 70″(1778mm) | 212″(5385mm) | 18″(457mm) | 25 HP(18.64 kW) |
See It in Action

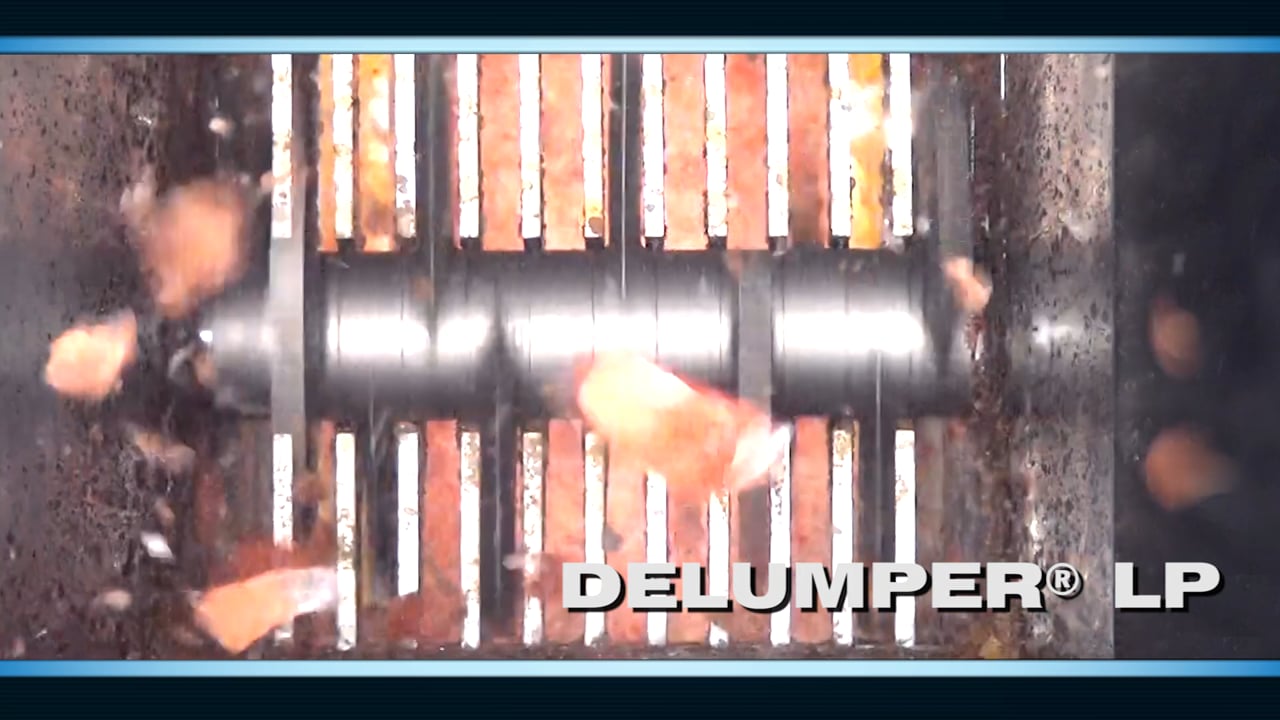

DELUMPER LP In Action
Technical Specifications
- PropertyValue
- Extended cutting teeth rotating through a heavy bar cage
- Mounting Options
- Straight-through design suitable for inline installation
- Construction Materials
- Carbon steel, 304L or 316L stainless steel, and special alloys
- Features
- Handles sticky, tough, or abrasive materials; self-cleaning operation; optional hardfacing for extended cutter life
Need Help Choosing the Right Solution?
Our engineers have over a century of experience matching equipment to applications. Tell us about your process and we'll recommend the best fit.
Applications & Usage
Where This Product Is Used
Cement
Discover Franklin Miller's Cement Crusher and Cement Lump Breaker solutions, designed to optimize cement production efficiency, reduce downtime, and ensure consistent material sizing and flow for high-quality output.

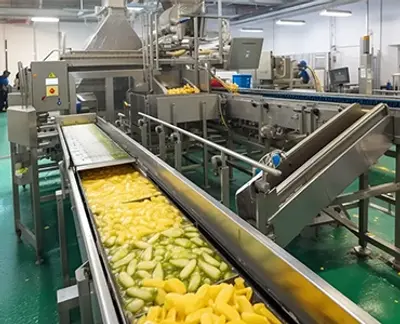

Food Processing Equipment
Franklin Miller's line of Delumpers and Shredders can be finely calibrated to output a specific size for any food processing equipment needs.

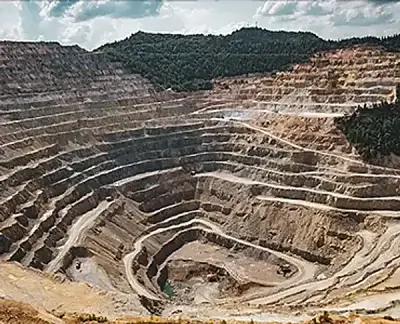

Mining
Delumper brand machines crushers deagglomerate coal, fly ash, phosphate, minerals and much. Our unit can handle capacities of 1000 tons an hour and more.
Industrial Chemical Crushers
Franklin Miller's crushers reduce solids, lumps, and agglomerates to precise sizes, ensuring product consistency and operational efficiency.
More to Explore
Related Crushers

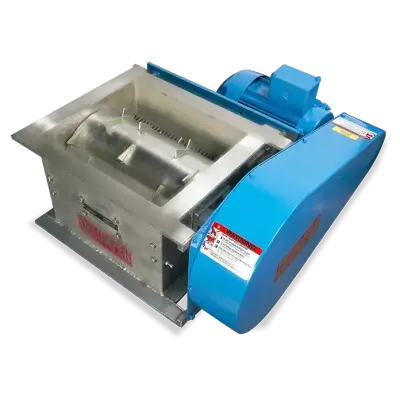

DELUMPER® L
Interested In Learning More About Our Delumper® L?

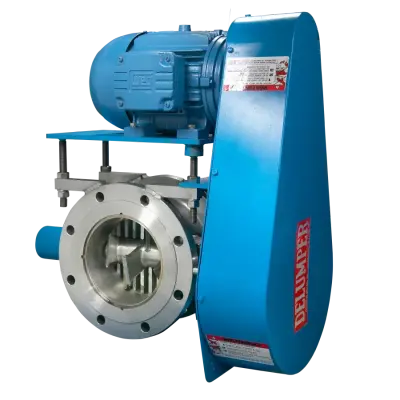

PIPELINE DELUMPER®
Interested In Learning More About Our Pipeline Delumper®?

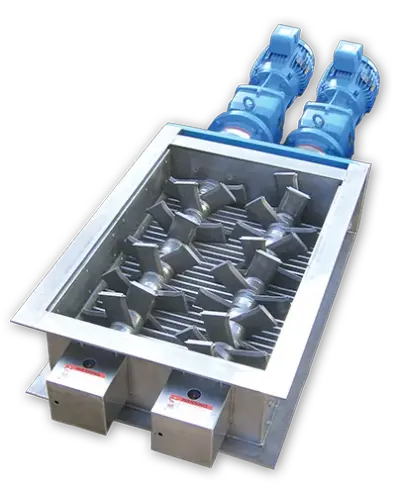

DELUMPER® Multi Shaft LP
Interested In Learning More About Our Delumper® Multi-Shaft LP?
DELUMPER® S4
Interested In Learning More About Our Delumper® S4 Sanitary Crusher?

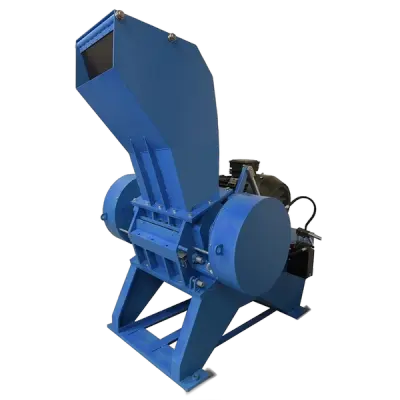

VULCANATOR® Rubber Granulator
Interested In Learning More About Our Vulcanator® Rubber Granulator?

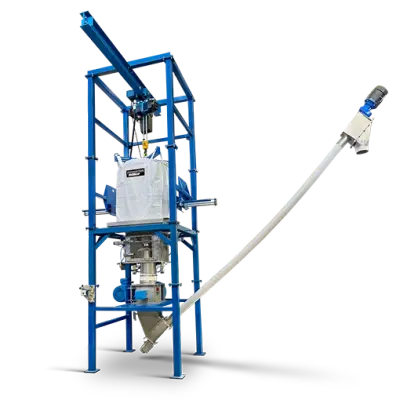

DELUMPER (BBU) Bulk Bag
