DELUMPER® S4
Sanitary polished crusher with clean-in-place design
The DELUMPER® S4 is a sanitary lump crusher featuring easy interior access, clean-in-place capability, and a polished finish, purpose-built for food, pharmaceutical, and hygienic processing environments.
Key Features
- Precision Operation

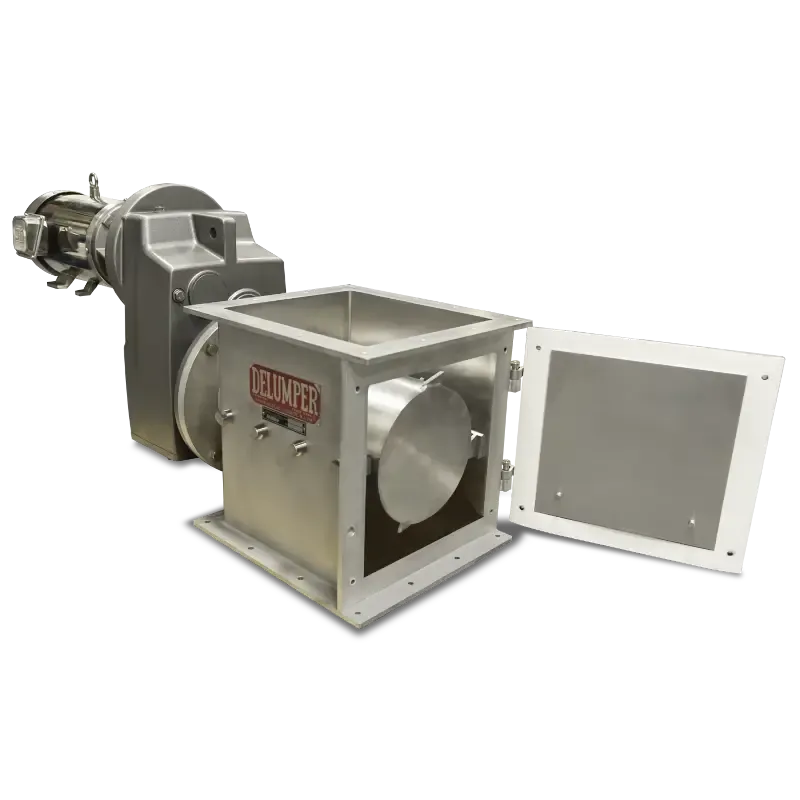

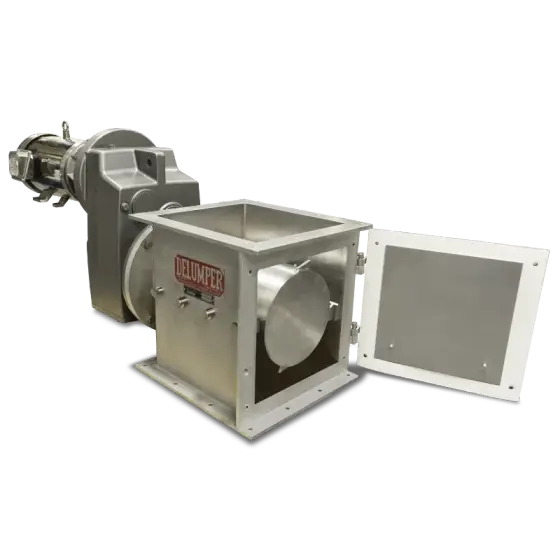

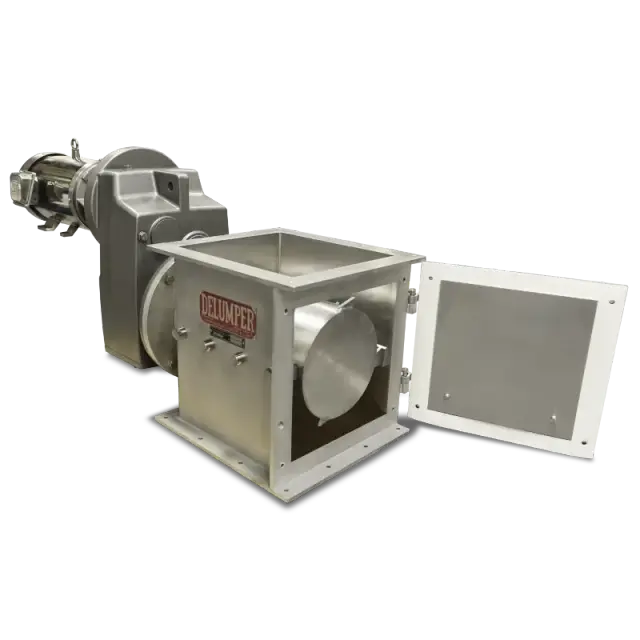

- Convenient Side Access Door
- Polished Interior Option
- Cantilevered Drive Support
- Low Profile Design
Established 1918 · Made in USA · Livingston, NJ
Product Overview
Design
- Construction
- One-piece stainless steel body with polished interior surfaces
- Drive Type
- Direct gear drive for smooth and quiet operation
- Maintenance Features
- Easy interior access, clean-in-place capability, quick changeover of cutting elements
- Seal Type
- Teflon shaft seal to protect bearings and maintain product containment
Designed and built to meet the highest quality standards, the DELUMPER® S4 features a one-piece, stainless steel body with all surfaces and welds meticulously polished. There are no interior crevices where product can accumulate or stagnate. Precision machined and balanced for low vibration and noise, the DELUMPER® S4 delivers the utmost in smooth and precise operation.
Low Maintenance:

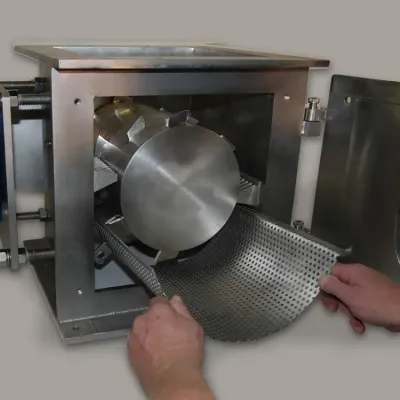

The S4 employs a direct gear drive for smooth and quiet operation as well as low maintenance. The unit features a Teflon shaft seal to protect bearings and keep the product in the chamber. The drum can be quickly removed for cleaning or change-out. The drum with teeth and shaft are one piece with all fasteners located outside the cutting chamber.
Dimensions
| Model No. | Input A | B | C | D | E | G | HP |
|---|---|---|---|---|---|---|---|
| DC1077-S4 | 12″(305 mm) | 12″(305 mm) | 17″(432 mm) | 17″(432 mm) | 50″(1270 mm) | 17″(432 mm) | 5 - 10(3.7-7.5 kW) |
| DC1075-S4 | 14″(356 mm) | 16″(406 mm) | 18.25″(464 mm) | 20.5″(521 mm) | 72″(1829 mm) | 19″(483 mm) | 10 - 15(7.5-11.2 kW) |
Technical Specifications
- Construction
- One-piece stainless steel body with polished interior surfaces
- Drive Type
- Direct gear drive for smooth and quiet operation
- Maintenance Features
- Easy interior access, clean-in-place capability, quick changeover of cutting elements
- Seal Type
- Teflon shaft seal to protect bearings and maintain product containment
