Up to five shafts for massive multi-stage crushing

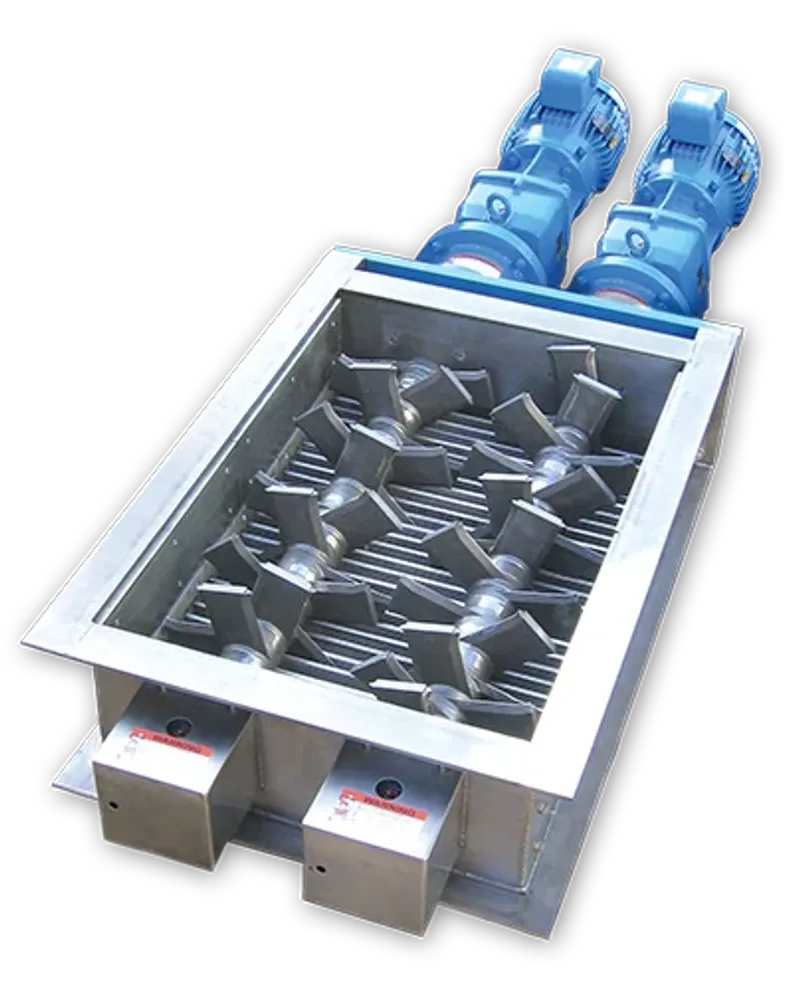

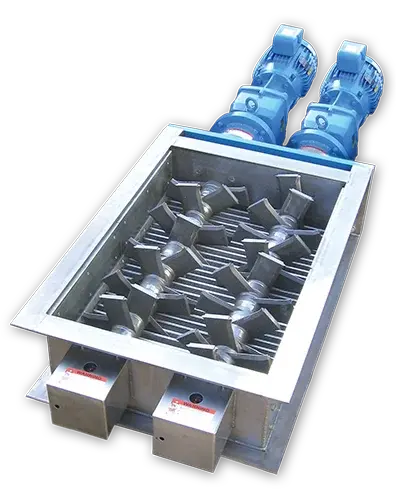

The DELUMPER® Multi-Shaft LP offers dual, triple, and five-shaft configurations to process massive quantities of lumps and agglomerates with a powerful multi-stage crushing action.
Established 1918 · Made in USA · Livingston, NJ
Product Overview

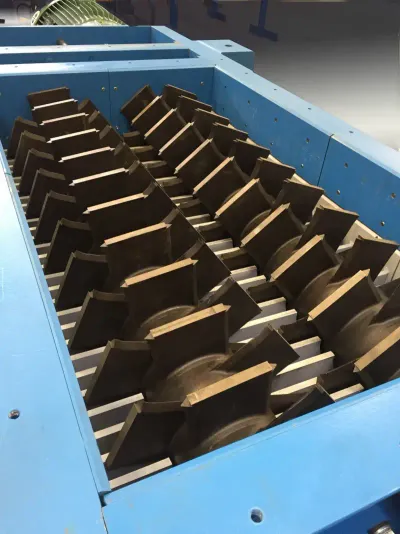

The DELUMPER® LP multiple rotors are provided in a number of configurations to fit many application requirements, in standard (LP) and Ultra-Heavy-Duty (LP-HD) versions. These units feature: direct gear drives, shaft seals and heavy-duty bearings. The DELUMPER Multi-Shaft LP features multiple high profile LP cutters stacked on heavy parallel shafts. Each tooth is constructed for precise balance, interchangeability and smooth operation. The teeth are mounted in a staggered pattern around the shaft diameter to assure smooth continuous operation, reduced power consumption and optimal feeding. The rugged extended LP teeth rotate through a heavy bar grating with a low friction design. The teeth are typically supplied with leading edges to crack the feed with a pick-like action and handle solids with reduced shock and power consumption.
A unique hardfacing option is available for extended cutter life under abrasive conditions.

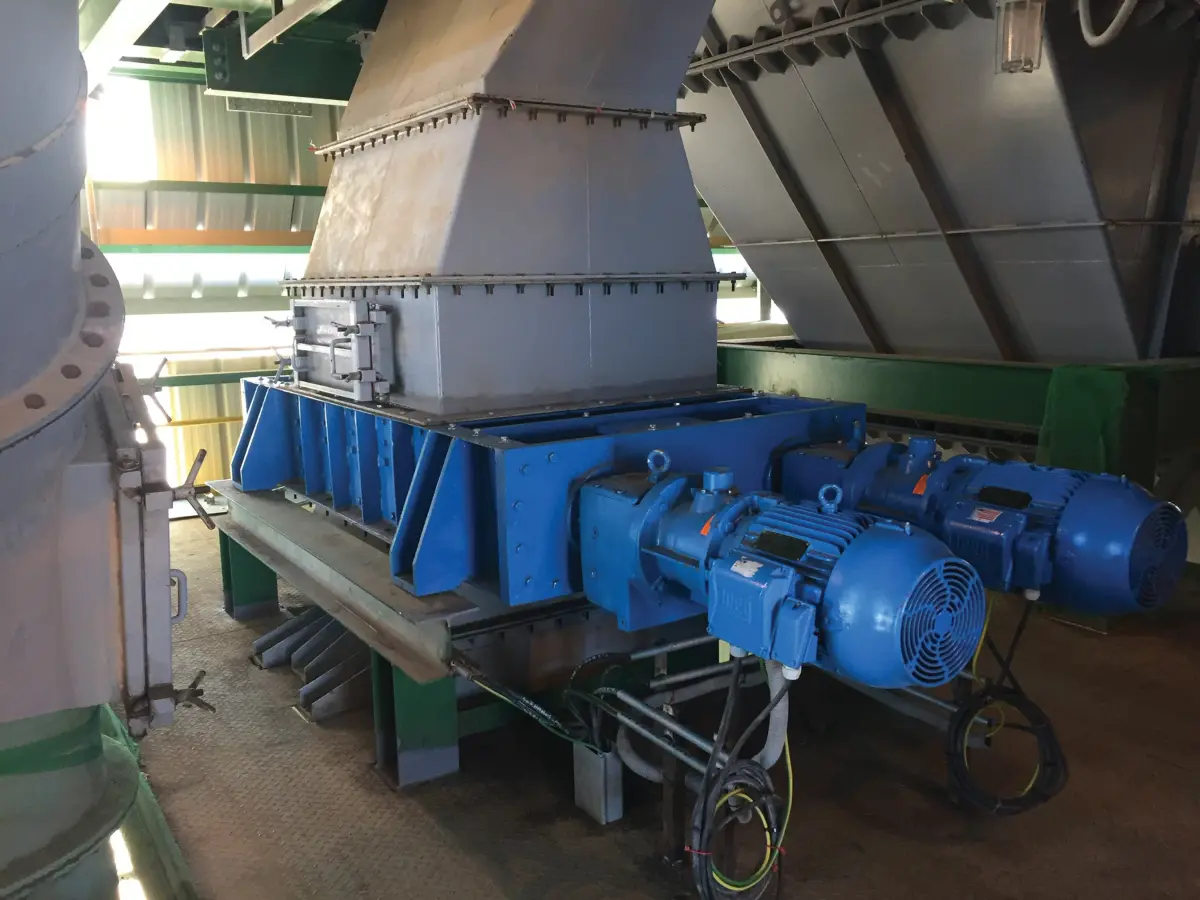

Customize this product for your application
The DELUMPER Multi-shaft LP is ruggedly constructed of heavy plate and channel for low vibration and noise. Input and output flanges are provided for easy connections. Units are available in carbon steel, T304 or T316 stainless steel, and nickel based alloys on special order.
| Model # | Shaft No. | Input Width | Input Length | Overall Width | Length | Height | Typ HP |
|---|---|---|---|---|---|---|---|
| DC1818LP | 2 | 18″(457mm) | 18″(457mm) | 22″(559mm) | 61″(1549mm) | 12″(305mm) | 10 HP(7.50 kW) |
| DC2830LP | 2 | 28″(711mm) | 30″(762mm) | 33.5″(851mm) | 88″(2235mm) | 13″(330mm) | 15 HP(11.18 kW) |
| DC2840LP | 2 | 28″(711mm) | 40″(1016mm) | 36.9″(935mm) | 130″(3302mm) | 15″(381mm) | 25 HP(18.64 kW) |
| DC3456LP | 2 | 34″(864mm) | 58″(1473mm) | 54.5″(1384mm) | 201″(5095mm) | 18″(457mm) | 25 HP(18.64 kW) |
| DC4230LP | 3 | 42″(1067mm) | 30″(762mm) | 49″(1245mm) | 97″(2464mm) | 15″(381mm) | 15 HP(11.18 kW) |
| DC4240LP | 3 | 42″(1067mm) | 40″(1016mm) | 49″(1245mm) | 107″(2718mm) | 15″(381mm) | 15 HP(11.18 kW) |
| DC4856LP | 3 | 48″(1219mm) | 56″(1422mm) | 70″(1778mm) | 212″(5385mm) | 18″(457mm) | 25 HP(18.64 kW) |

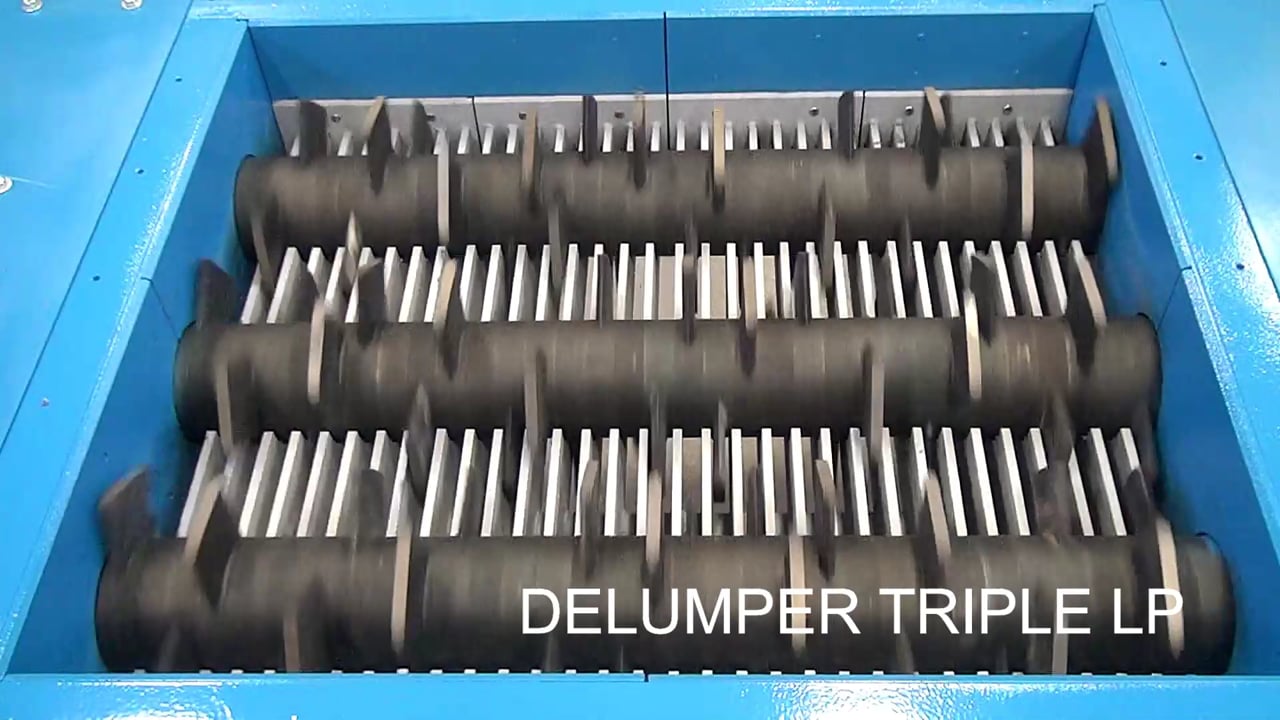

See It in Action
Our engineers have over a century of experience matching equipment to applications. Tell us about your process and we'll recommend the best fit.
Applications & Usage
Discover Franklin Miller's Cement Crusher and Cement Lump Breaker solutions, designed to optimize cement production efficiency, reduce downtime, and ensure consistent material sizing and flow for high-quality output.
Delumper brand machines crushers deagglomerate coal, fly ash, phosphate, minerals and much. Our unit can handle capacities of 1000 tons an hour and more.
