DELUMPER | Crushers

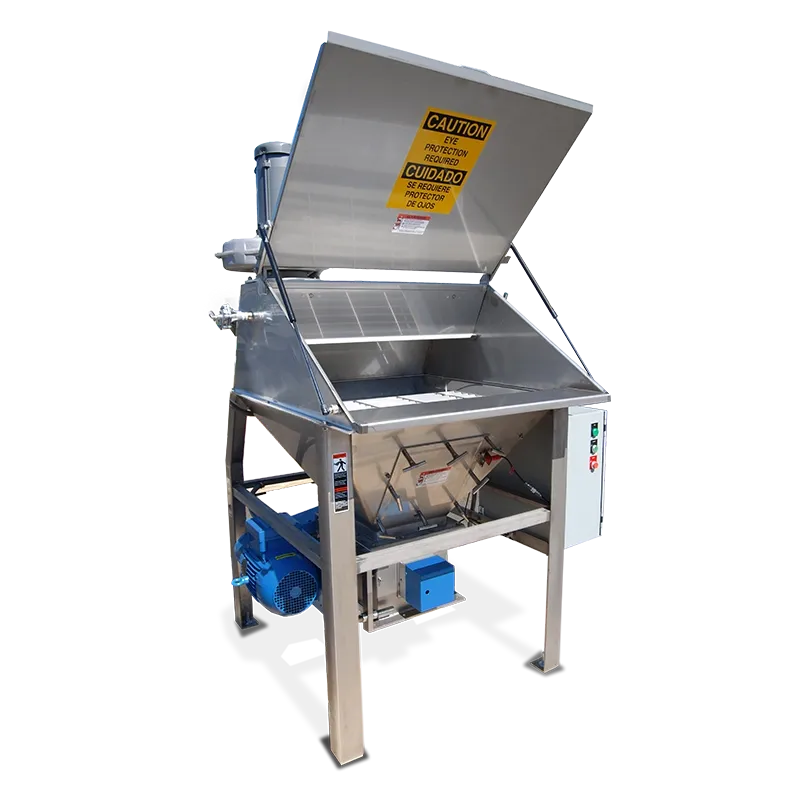

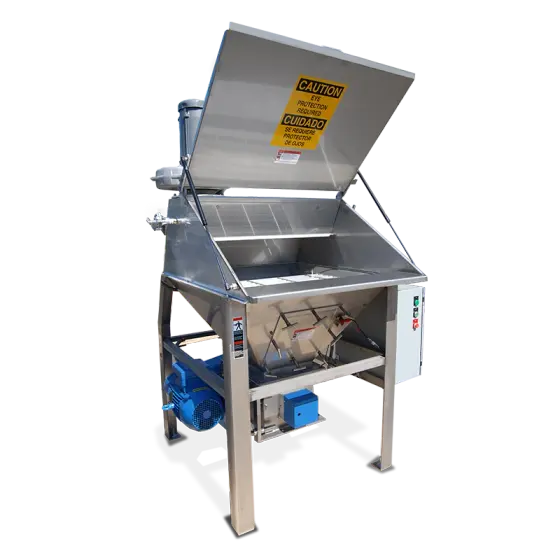

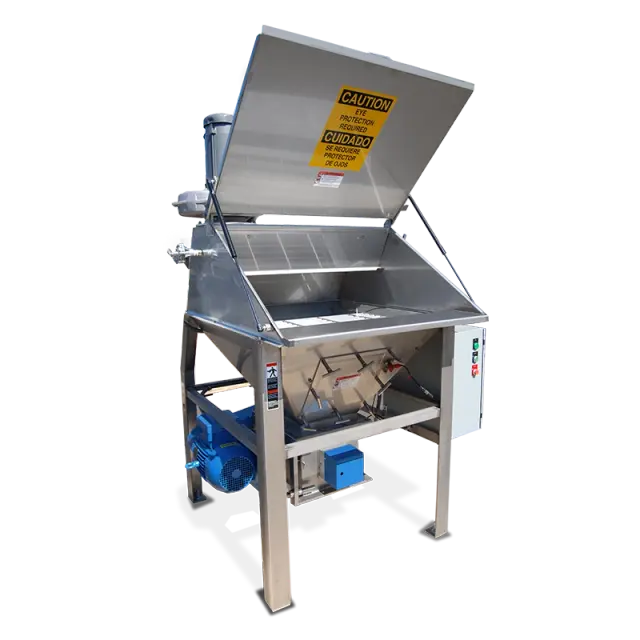

DELUMPER® Bag Station

Pre-engineered bag dump with built-in lump breaker

The DELUMPER® BAGSTATION is a pre-engineered bag dump station that unloads and conditions lumpy bagged solids, reducing agglomerates to a free-flowing state for seamless introduction into your process line.

Key Features

  • Heavy Body Construction
  • Smooth Interior Finish
  • Individually Replaceable Teeth
  • Pre-Engineered Design

Established 1918 · Made in USA · Livingston, NJ

Product Overview

Description

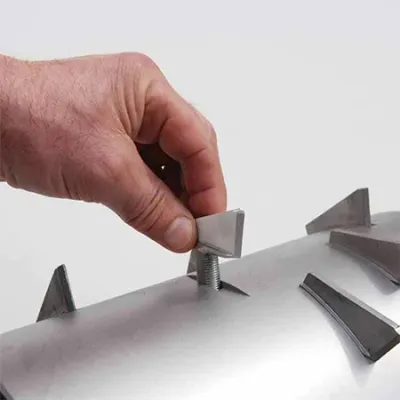

Cutter Technology
Individually replaceable teeth mounted on a smooth rotating drum intermesh with sizing combs to process agglomerates and reduce oversized particles to their basic grain size without over-grind, heat rise, or fines.
Mounting Options
Heavy body construction with 12 inch x 12 inch throat opening, smooth interior finish, and shaft seals.
Construction Materials
Durable stainless steel construction.
Features
Includes a grating platform for bags, discharge hopper, DELUMPER processor, and control system. Options include bag slitting knives, special alloys and finishes, bag compactor, discharge screw conveyor, load cells, explosion-proof components, and more.
Description

The included DELUMPER DC1077L features a heavy body construction with 12″ x 12″ throat opening, a 5 HP 230/460 v. 3 phase motor and drive, smooth interior finish, individually replaceable teeth, shaft seals and more. The unit controls feature all-in-one operation, an emergency shut-off switch, optional VFD to help control feed rate and on/off led indicators.

View full specifications

Options

Customize this product for your application

The DELUMPER BAGSTATION features durable stainless steel construction, a grating platform for bags, discharge hopper, DELUMPER processor and control system. This unit can be provided as a complete processing solution. Options include bag slitting knives, special alloys and finishes, bag compactor, discharge screw conveyor, load cells, explosion-proof components and more.

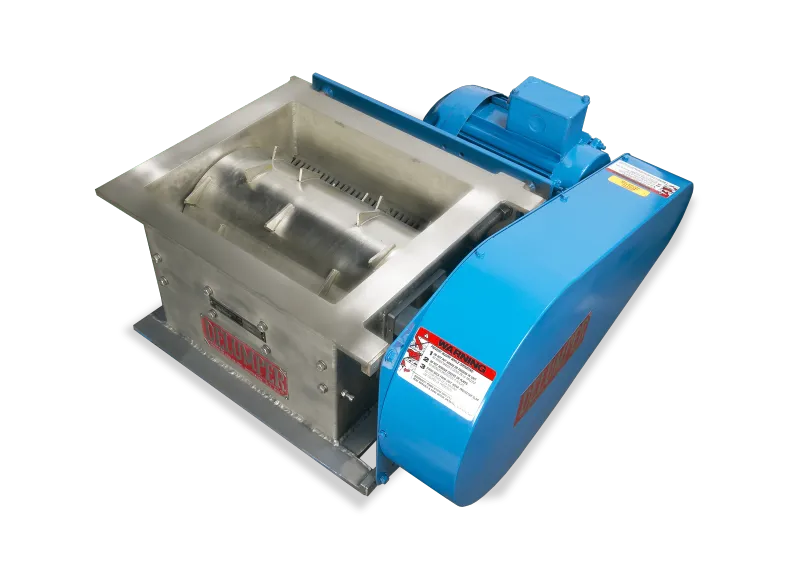

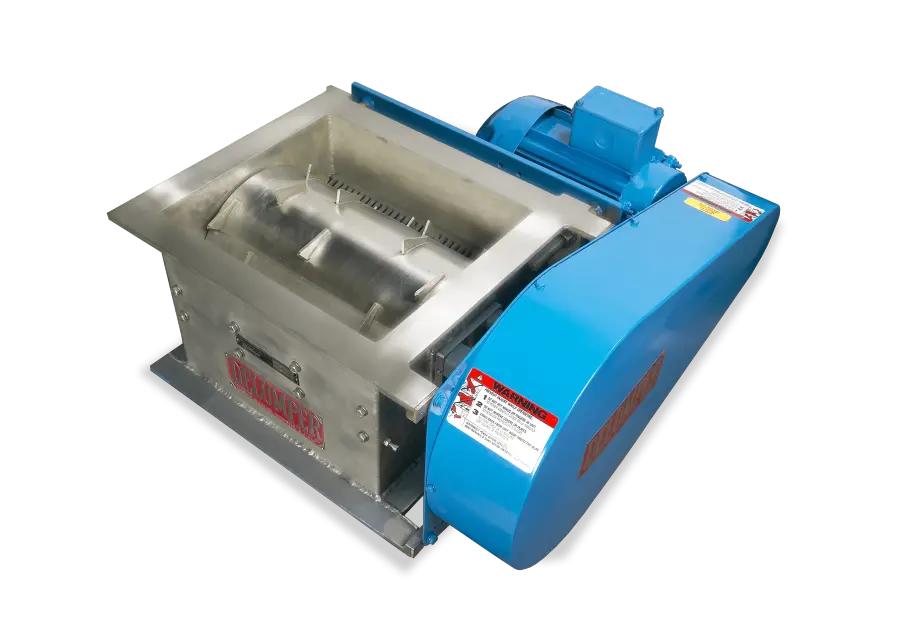

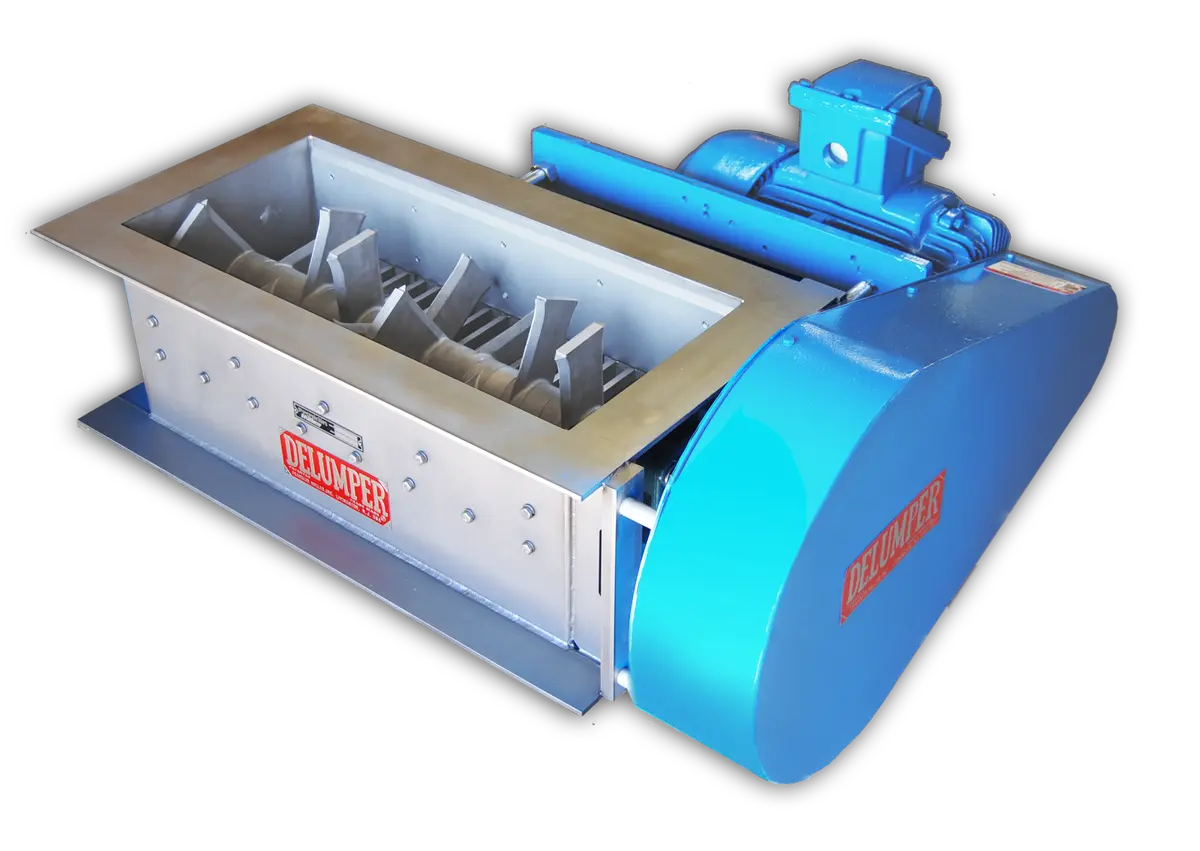

Delumper L

The DELUMPER® “L” series crushers reduce products to a desired output size with a positive, once through, chopping action. Cutting teeth mounted to a smooth drum rotate through sizing combs to process agglomerates and reduce oversized particles to their basic grain size without over-grind, heat rise or fines.

DELUMPER lump breakers reduce lumps, crush minerals, improve product consistency, facilitate mixing, drying and conveying, and keep process lines running smoothly. These units have extraordinary processing capabilities on a wide range of materials including chemicals, sugar, food, minerals, urea, ammonium nitrate, salts, colors, plastics, pharmaceuticals and more. DELUMPER “L” series lump breakers typically utilize specially designed teeth mounted on a smooth, rotating drum intermesh with sizing combs, reducing solids to their basic grain size without overgrind, heat rise or fines. Lumps up to full inlet opening size can be processed. The unit runs at low speed and creates little vibration or noise.

DELUMPER “L” Series crushers typically employ no screens. Instead, specially designed teeth mounted on a smooth, rotating drum intermesh with sizing combs, reducing solids to their basic grain size without overgrind, heat rise or fines. The unit runs at low speed and creates little vibration or noise.

Delumper LP


Technical Specifications

Cutter Technology
Individually replaceable teeth mounted on a smooth rotating drum intermesh with sizing combs to process agglomerates and reduce oversized particles to their basic grain size without over-grind, heat rise, or fines.
Mounting Options
Heavy body construction with 12 inch x 12 inch throat opening, smooth interior finish, and shaft seals.
Construction Materials
Durable stainless steel construction.
Features
Includes a grating platform for bags, discharge hopper, DELUMPER processor, and control system. Options include bag slitting knives, special alloys and finishes, bag compactor, discharge screw conveyor, load cells, explosion-proof components, and more.

Need Help Choosing the Right Solution?

Our engineers have over a century of experience matching equipment to applications. Tell us about your process and we'll recommend the best fit.
