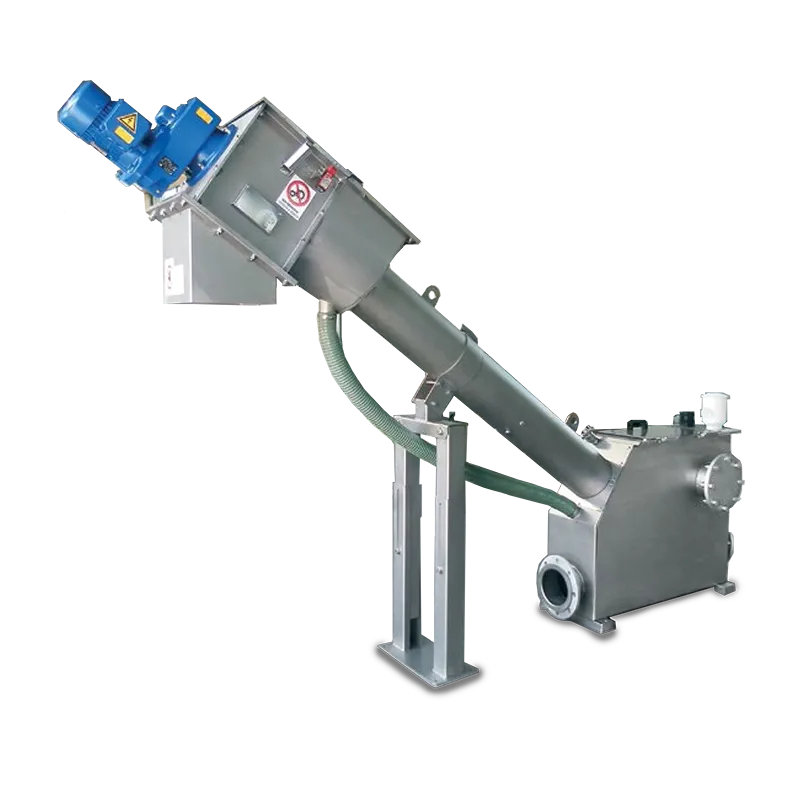

SPIRALIFT SI
The SPIRALIFT® SI is an inline screening system for wastewater applications that captures, conveys, and dewaters liquid-entrained solids in a single, compact unit with minimal operator attention.
Key Features
- Shaftless Auger Screen Design
- Up to 4800 GPM Capacity
- Replaceable Brush Sections
- Variable Conveying Length
- Automatic Operation
Established 1918 · Made in USA · Livingston, NJ
Product Overview

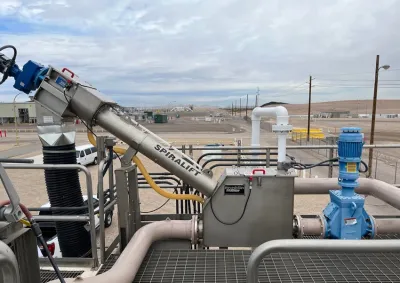

Description
- Construction
- Fully enclosed stainless steel tank with safety interlocked hinged cover.
- Screen Basket
- Standard ¼” (6mm) perforations for effective solids removal.
- Brushes
- Rugged segmented nylon brushes attached to the auger perimeter; individually replaceable.
- Operation
- Automatic operation with built-in spray wash system and optional compactor.

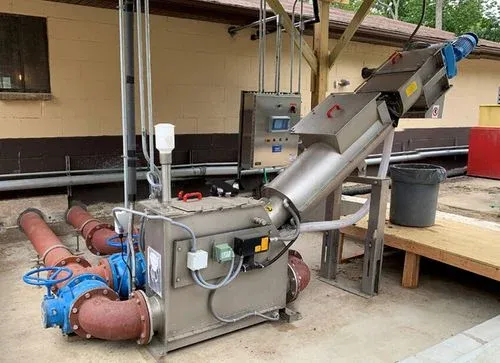

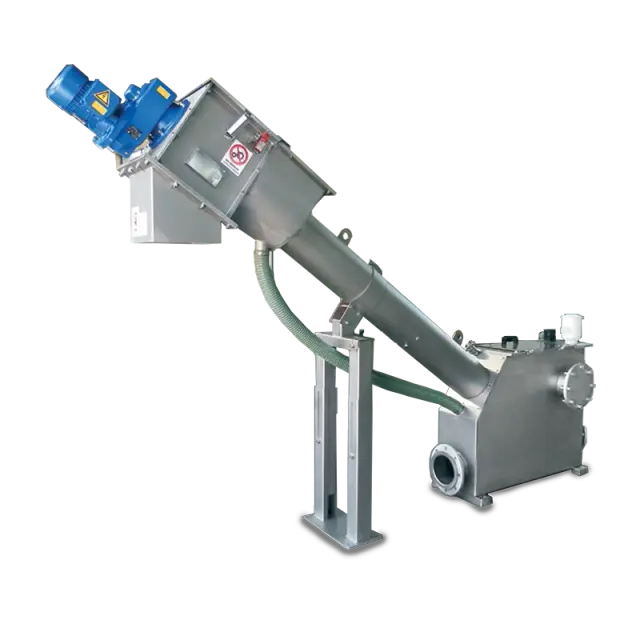

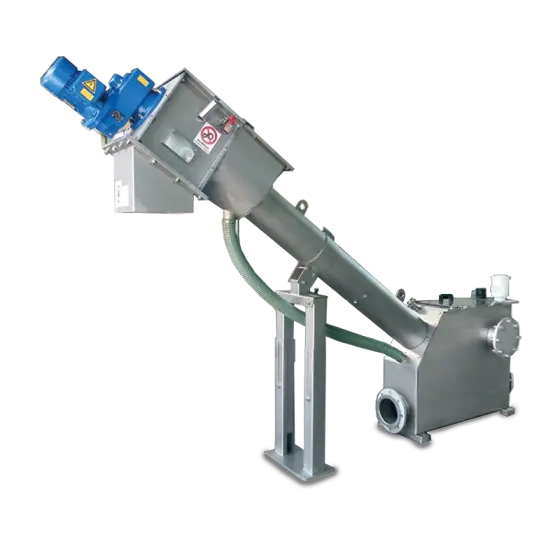

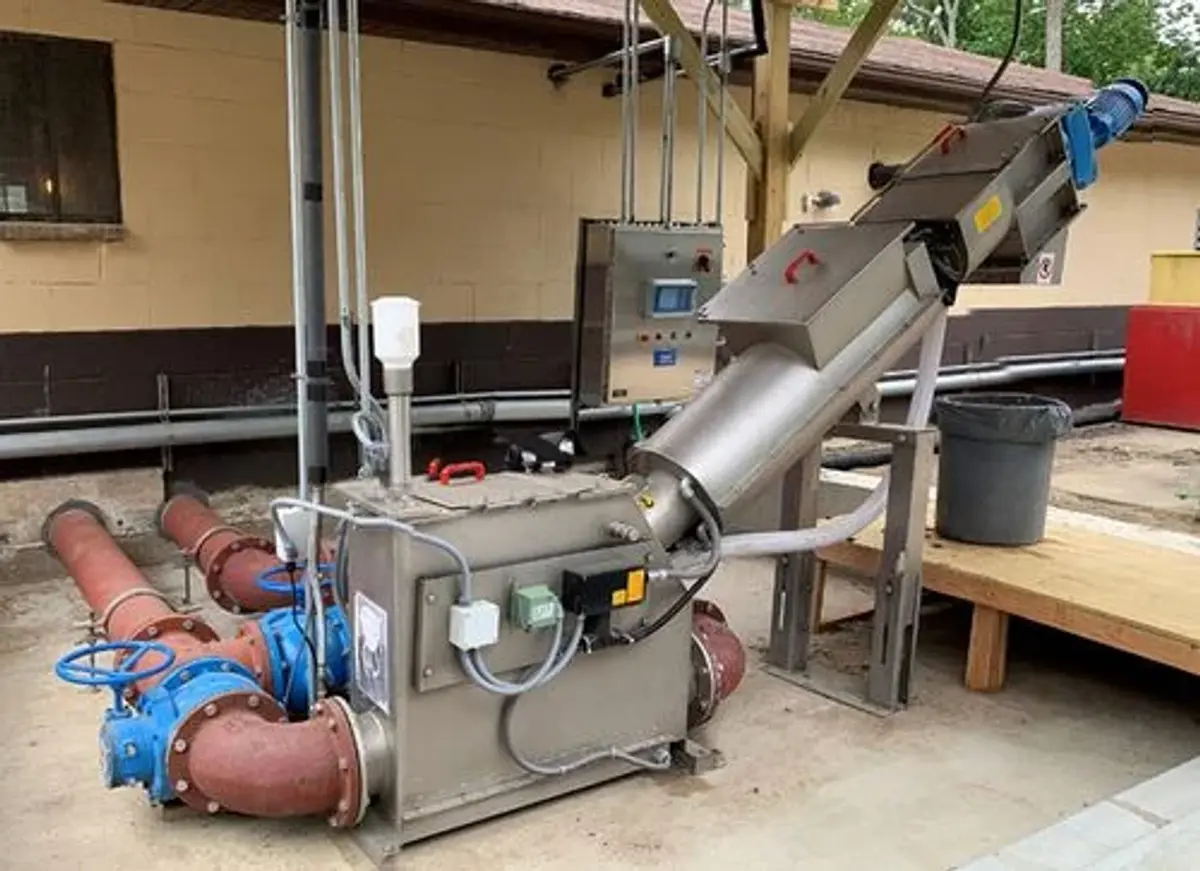

The SPIRALIFT® SI screw screen is housed in a fully enclosed stainless steel tank. It is easy to install to pipelines via standard ANSI flanges. As the unit is self-contained, installation is simple with no need for a concrete channel. The SI is equipped with a built-in spray wash system that cleans the captured solids. as well as a compactor located near the unit discharge. The tank enclosure is supplied with a safety interlocked hinged cover for quick access to the unit interior.
Options
Customize this product for your application
An S270 Automatic Control System monitors and controls system operation. This PLC based controller is provided standard in a NEMA 4X FRP enclosure. System functions include sequence timing, jam sensing and jogging function, level sensing run control and spray-wash solenoid control.

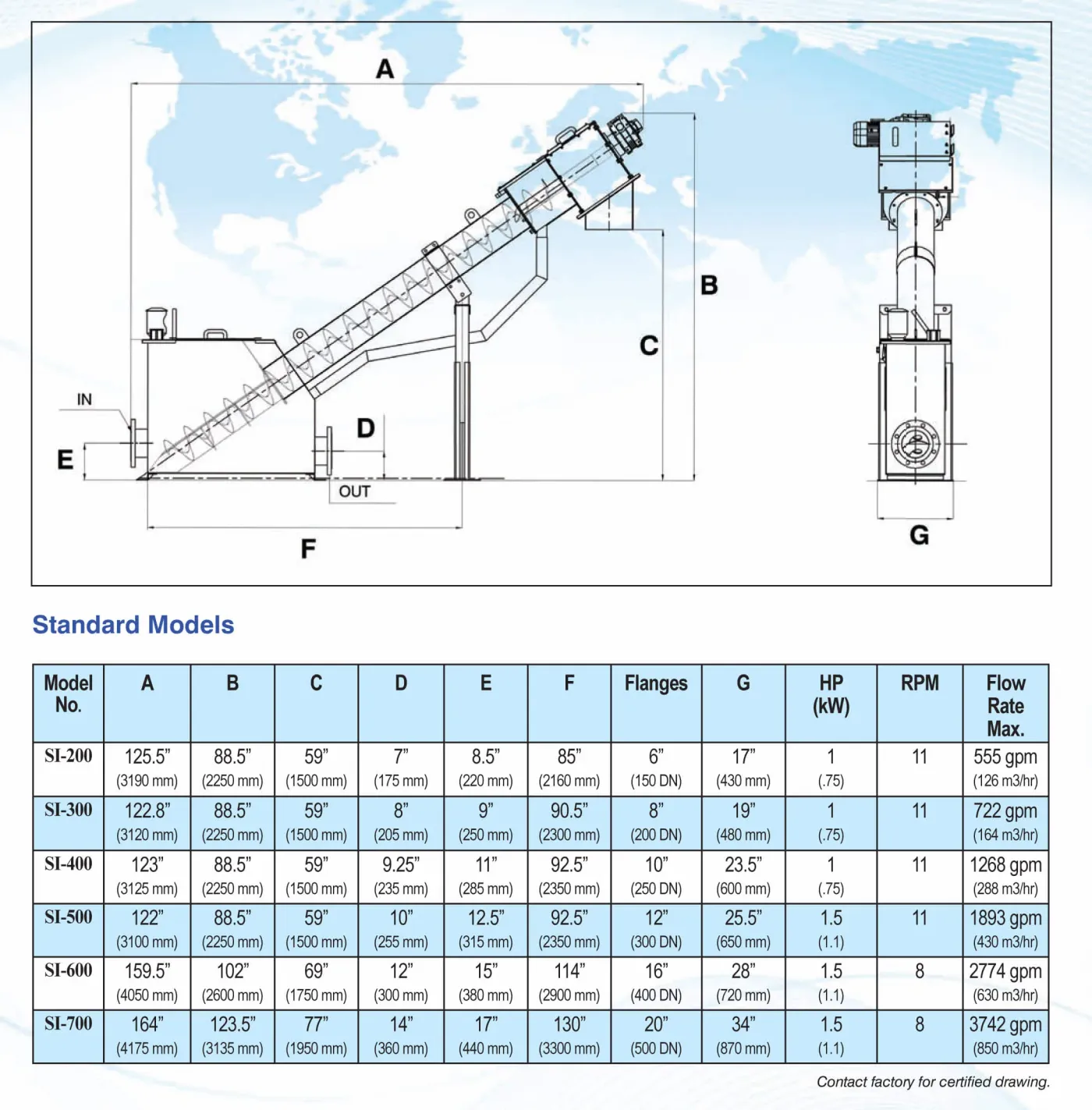

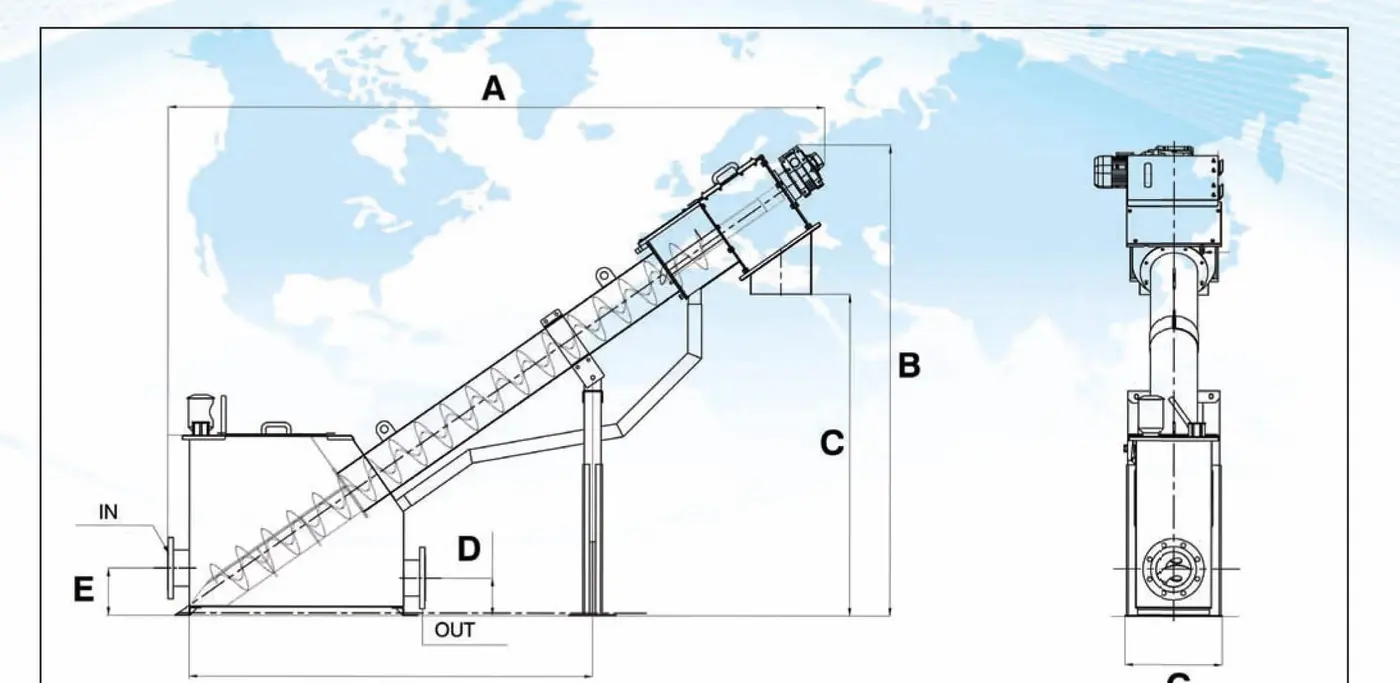

Dimensions
| Model No. | A | B | C | D | E | F | Flanges | G | HP (kW) | RPM | Flow Rate Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SI-200 | 125.5″(3190 mm) | 88.5″(2250 mm) | 59″(1500 mm) | 7″(175 mm) | 8.5″(220 mm) | 85″(2160 mm) | 6″(150 DN) | 17″(430 mm) | 1(.75 kW) | 11 | 555 gpm(126 m³/hr) |
| SI-300 | 122.8″(3120 mm) | 88.5″(2250 mm) | 59″(1500 mm) | 8″(205 mm) | 9″(250 mm) | 90.5″(2300 mm) | 8″(200 DN) | 19″(480 mm) | 1(.75 kW) | 11 | 722 gpm(164 m³/hr) |
| SI-400 | 123″(3125 mm) | 88.5″(2250 mm) | 59″(1500 mm) | 9.25″(235 mm) | 11″(285 mm) | 92.5″(2350 mm) | 10″(250 DN) | 23.5″(600 mm) | 1(.75 kW) | 11 | 1268 gpm(288 m³/hr) |
| SI-500 | 122″(3100 mm) | 88.5″(2250 mm) | 59″(1500 mm) | 10″(255 mm) | 12.5″(315 mm) | 92.5″(2350 mm) | 12″(300 DN) | 25.5″(650 mm) | 1.5(1.1 kW) | 11 | 1893 gpm(430 m³/hr) |
| SI-600 | 159.5″(4050 mm) | 102″(2600 mm) | 69″(1750 mm) | 12″(300 mm) | 15″(380 mm) | 114″(2900 mm) | 16″(400 DN) | 28″(720 mm) | 1.5(1.1 kW) | 8 | 2774 gpm(630 m³/hr) |
| SI-700 | 164″(4175 mm) | 123.5″(3135 mm) | 77″(1950 mm) | 14″(360 mm) | 17″(440 mm) | 130″(3300 mm) | 20″(500 DN) | 34″(870 mm) | 1.5(1.1 kW) | 8 | 3742 gpm(850 m³/hr) |
Technical Specifications
- Construction
- Fully enclosed stainless steel tank with safety interlocked hinged cover.
- Screen Basket
- Standard ¼” (6mm) perforations for effective solids removal.
- Brushes
- Rugged segmented nylon brushes attached to the auger perimeter; individually replaceable.
- Operation
- Automatic operation with built-in spray wash system and optional compactor.
Need Help Choosing the Right Solution?
Our engineers have over a century of experience matching equipment to applications. Tell us about your process and we'll recommend the best fit.
More to Explore
Related Wastewater Screens
SPIRALIFT® SL
Interested In Learning More About Our Spiralift® SL?

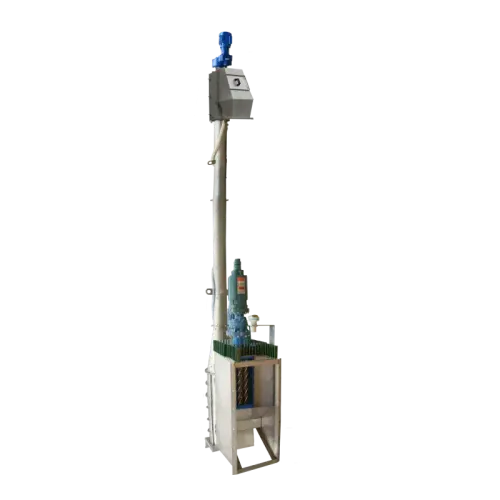

SPIRALIFT® SLV
Interested In Learning More About Our Spiralift® SLV?

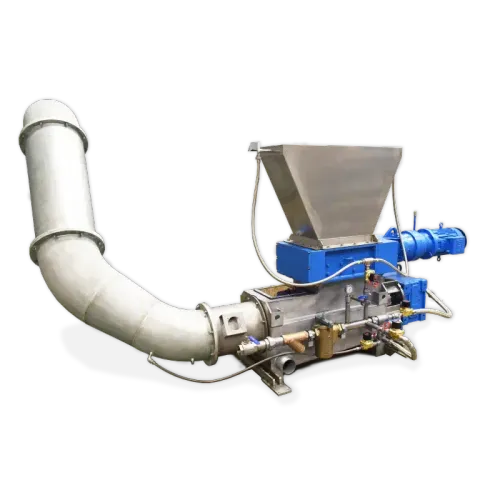

SPIRALIFT® SC Washer / Compactor
Interested In Learning More About Our Spiralift SC®?

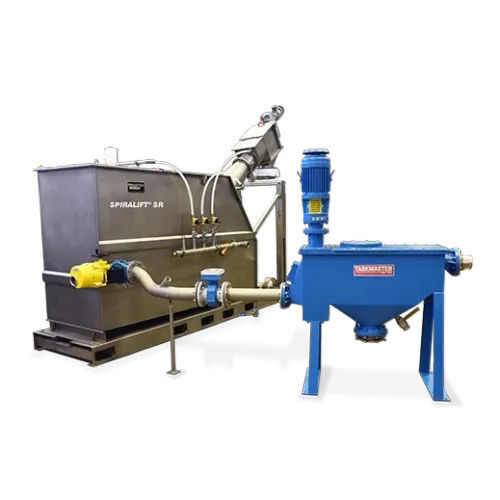

SPIRALIFT® SR
