Read More about The Problem With Flushable WipesSPIRALIFT® SLV
Vertical fine screen built for pump station wet wells

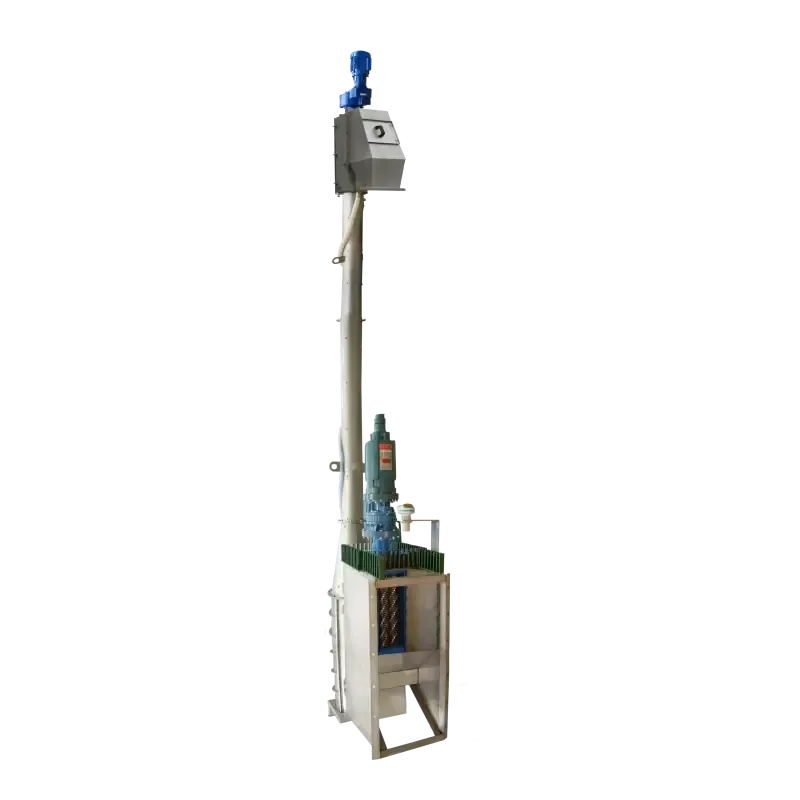

The SPIRALIFT® SLV is a vertical fine screen with a minimal footprint that conveys screened solids straight up, making it ideal for tight installations where conventional screens cannot fit.
Key Features
- Compact Vertical Footprint
- Fine Solids Screening
- CUTTER CARTRIDGE® Technology
- Integrated Control System
- Ultrasonic Level Sensor
Established 1918 · Made in USA · Livingston, NJ
Product Overview
Description
- Installation Flexibility
- Fits in tight locations such as pump stations’ wet wells.
- Screening Efficiency
- Provides fine screening of solids entrained in liquid flows.
- Integrated Grinder
- Equipped with TASKMASTER® grinder featuring CUTTER CARTRIDGE® technology.
- Control System
- Integrated control system manages all components, including an ultrasonic level sensor.

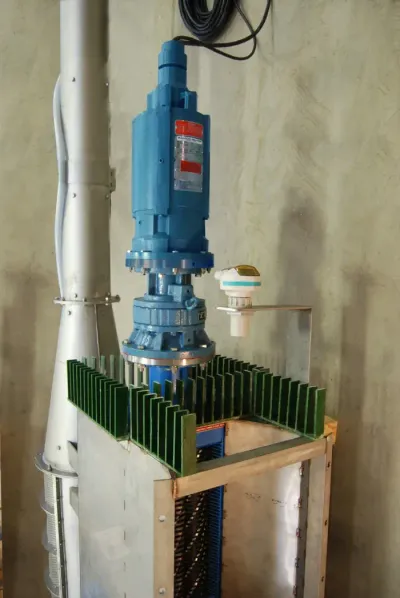

The SPIRALIFT SLV fits in extremely tight locations such as pump stations’ wet wells. It is typically supplied with a TASKMASTER grinder to pre-condition the solids. After the solids are reduced by the TASKMASTER grinder, they flow into the screen area. The solids are swept from the semicircular perforated screen by brushes mounted on the perimeter of the rotating auger and conveyed vertically up the unit’s transport tube. As the solids are conveyed up the screw, liquids drain back into the flow. An optional compaction zone can be provided for further dewatering.

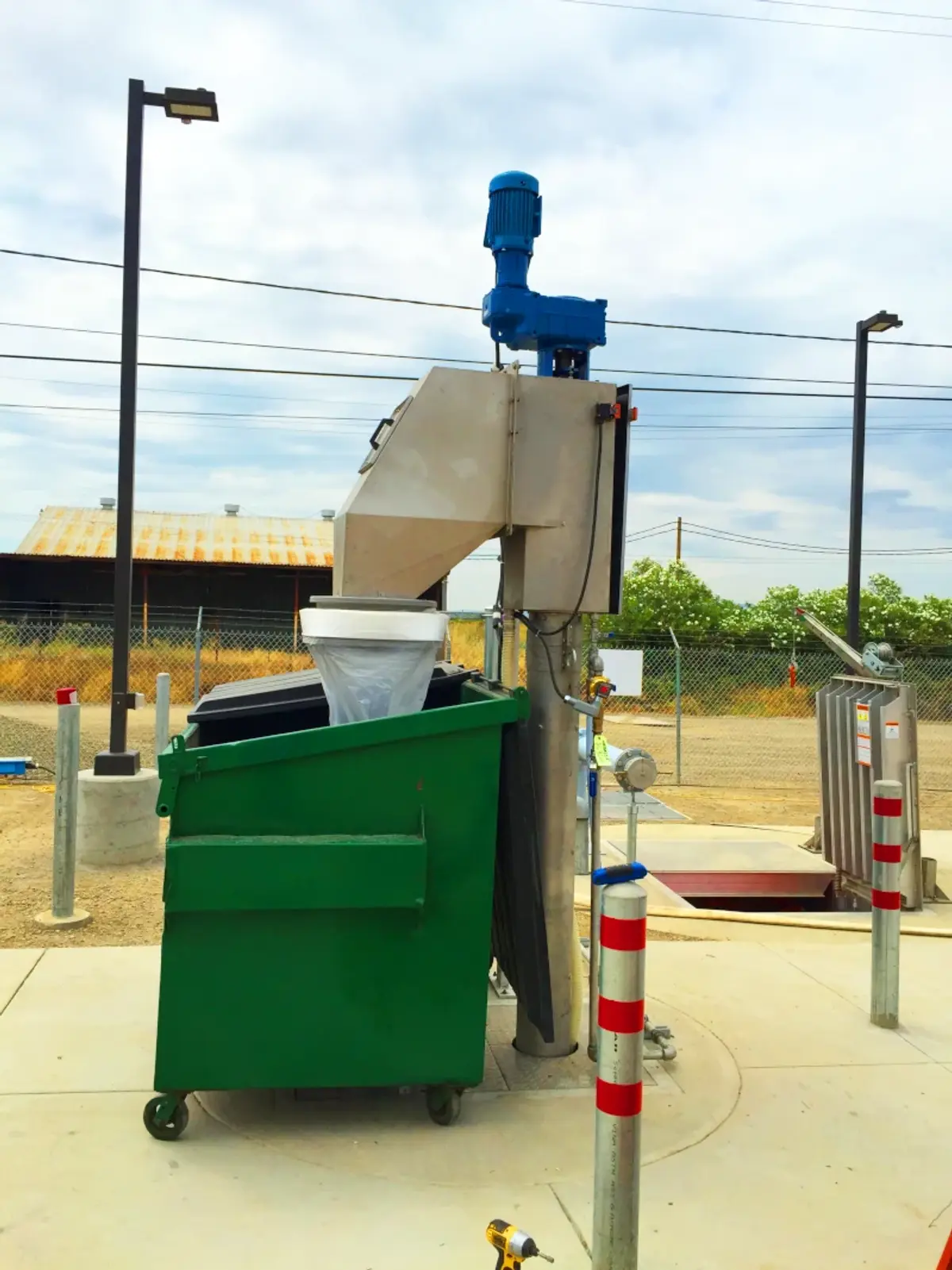

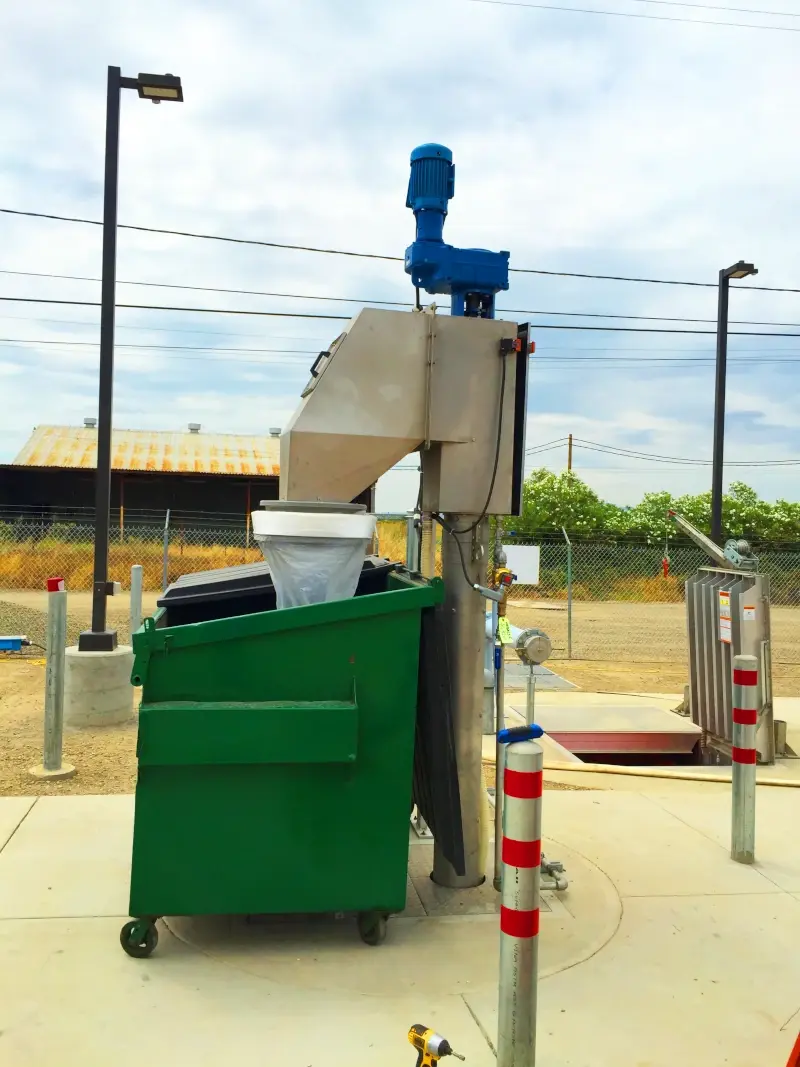

Options
Customize this product for your application
- Fits in Tight Locations Such as Pump Stations’ Wet Wells
- Fine Screens of Solids
- Taskmaster Grinder With CUTTER CARTRIDGE® Technology
- Control System Integrates all Components
- Ultrasonic Level Sensor
Dimensions
| Model No. | Max. Flow Level | Channel Width | Screen Basket Diameter | Max. Flow MGD (l/s) | Grinder HP (kW) | Screw HP (kW) |
|---|---|---|---|---|---|---|
| SLV12 | 24″-54″(610-1372 mm) | 16″-36″(406-914 mm) | 12″(305 mm) | 0.6(25) | 3-5(2.2-3.7) | 2(1.5) |
| SLV20 | 40″-60″(1016-1524 mm) | 24″-48″(610-1219 mm) | 20″(508 mm) | 1.6(70) | 3-5(2.2-3.7) | 2(1.5) |
| SLV28 | 40″-60″(1016-1524 mm) | 32″-60″(813-1524 mm) | 28″(711 mm) | 3.5(155) | 3-5(2.2-3.7) | 2(1.5) |
US gallon = 3.79 liters. Contact factory for certified drawing.
See It in Action
SPIRALIFT SLV In Action
Technical Specifications
Build Your Specification- Installation Flexibility
- Fits in tight locations such as pump stations’ wet wells.
- Screening Efficiency
- Provides fine screening of solids entrained in liquid flows.
- Integrated Grinder
- Equipped with TASKMASTER® grinder featuring CUTTER CARTRIDGE® technology.
- Control System
- Integrated control system manages all components, including an ultrasonic level sensor.
Need Help Choosing the Right Solution?
Our engineers have over a century of experience matching equipment to applications. Tell us about your process and we'll recommend the best fit.
Resource Center
Related Articles & Case Studies
Supporting articles tied to the SPIRALIFT® SLV help visitors compare solutions, applications, and operating results.
Wastewater Case StudiesFebruary 23, 2017

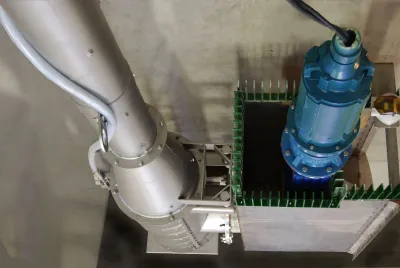

Maximum Security with The Space-saving SPIRALIFT® SLV
