Quad-shaft shredder with sizing screen output control
The TASKMASTER® QS2400 Quad Shaft Shredder is a high-capacity industrial shredder with four counter-rotating shafts engineered to handle demanding heavy-duty size reduction of tough, bulky materials.
Established 1918 · Made in USA · Livingston, NJ
Product Overview
The QS2400 is tailored for various shredding needs that require high power, substantial throat openings, and robust construction, alongside uniform particle size output. It incorporates several advanced features, including hardened precision cutters, planetary reducers, an optional stand and hopper, and a bulk feed capability. The QS2400's design focuses on delivering the highest level of performance and reliability, utilizing premium components and superior engineering.
This shredder is incredibly versatile, suited for processing materials such as aluminum cans, asphalt, cardboard, batteries, chemical and electronic waste, hazardous medical waste, plastics, playground surfaces, rubber, solid or bulky waste, textiles, wood, and more. Its design emphasizes efficient operation with minimal noise, dust, and heat emission, making it a preferred choice for a wide range of industrial shredding requirements.
| MODEL NO. | QS2420 | QS2430 |
|---|---|---|

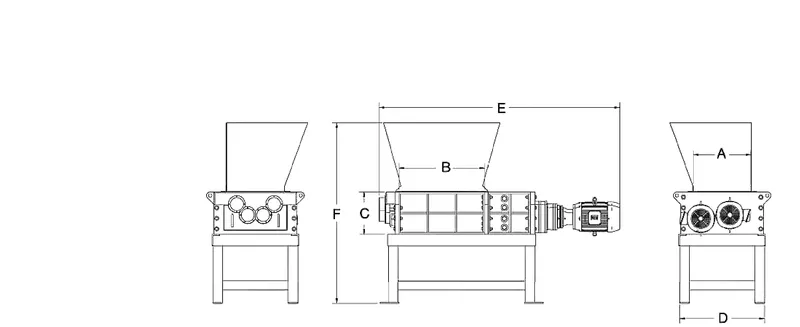

| Dimensions | ||
| A. Input Width | 23″(584 MM) | 23″(584 MM) |
| B. Input Length | 20″(508 MM) | 30″(762 MM) |
| C. Height | 15″(381 MM) | 15″(381 MM) |
| D. Overall Width | 32″(813 MM) | 32″(813 MM) |
| E. Overall Length | 80″(2032 MM) | 90″(2286 MM) |
| F. Overall Height | 97″(2464 MM) | 101″(2565 MM) |
| Specifications | ||
| Power (Min/Max) | 20–30 HP(15–22 kW) | 20–30 HP(15–22 kW) |
| Number of Motors | 2 | 2 |
| Weight | 2,800 lbs.(1270 kg) | 3,400 lbs.(1542 kg) |
Our engineers have over a century of experience matching equipment to applications. Tell us about your process and we'll recommend the best fit.
Applications & Usage
Our battery shredders reduce waste and scrap quickly and efficiently with a low speed high torque operation.
Franklin Miller's TASKMASTER® industrial cardboard shredders streamline recycling, reduce waste volume, and enhance operational efficiency.
Franklin Miller’s TASKMASTER® food waste shredders and grinders reduce any foodstuff down to size. Our industrial strength dual-shaft grinders can handle all types of food products with ease.
Taskmaster medical waste shredders are designed for processing syringes, latex gloves and more for safe disposal without the possibility of re-use.
Industrial document shredders can handle a large volume of papers, documents, cardboard and more with ease. Check our document shredders online.
Franklin Miller offers powerful industrial plastic shredders engineered for maximum durability and efficiency.
Resources
Resource Center
Supporting articles tied to the TASKMASTER® QS2400 help visitors compare solutions, applications, and operating results.
In the realm of industrial shredding equipment, choosing the right shredder can be tough. How do you decide which…
Read More about Dual-Shaft vs. Quad-Shaft Shredders: Your Guide to Making the Right ChoiceMore to Explore
Compact CUTTER CARTRIDGE shredder, few moving parts
Versatile twin-shaft shreds gravity-fed or liquid flow
Low-speed, high-torque processing of bulky materials
Extra heavy-duty twin-shaft with large throat opening
Largest model shreds pallets, drums, tires, and more
Shreds whole wood pallets including nails to chips
