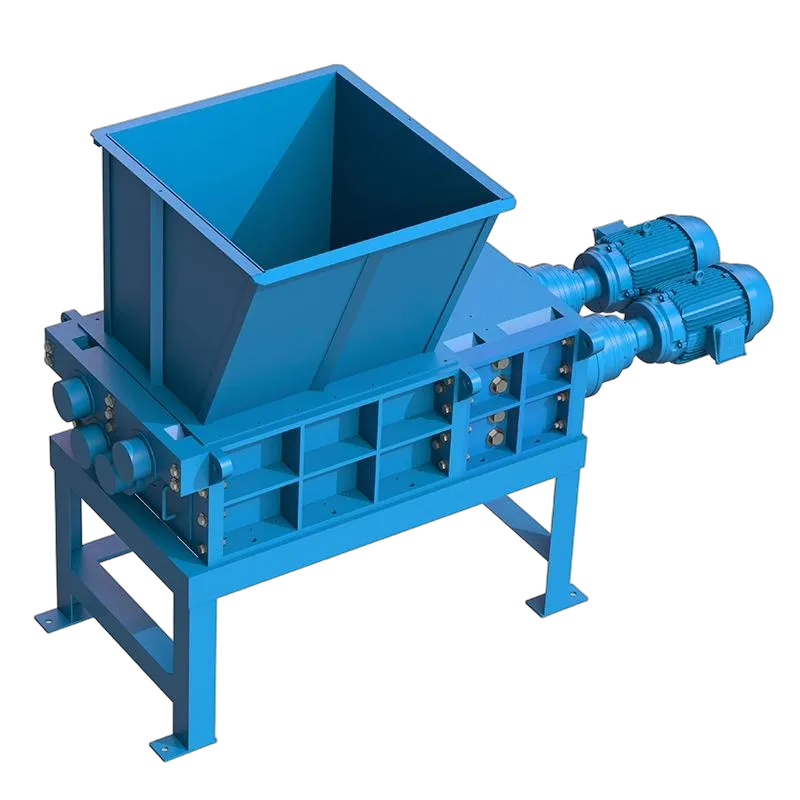

TASKMASTER® QS3200

Name: TASKMASTER® QS3200
Brand: Franklin Miller Inc.
SKU: QS3200

Largest quad-shaft for max-volume industrial shredding

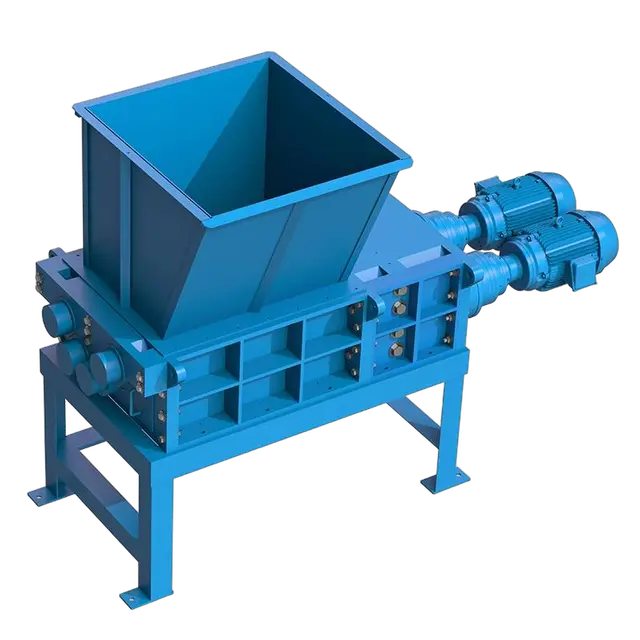

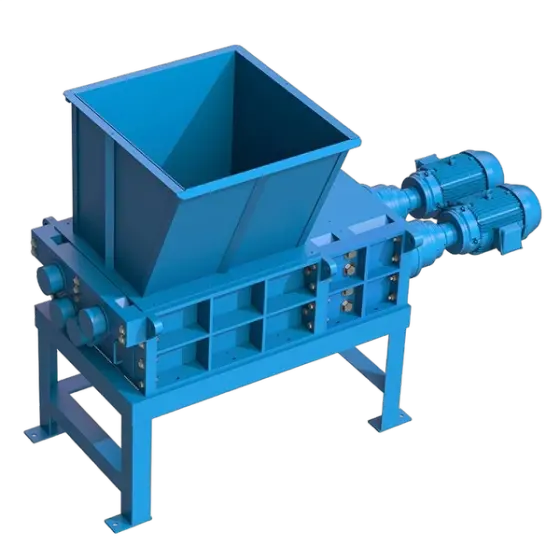

The TASKMASTER® QS3200 Quad Shaft Shredder is a large-format, four-shaft industrial shredder built for the most demanding high-volume size reduction applications requiring maximum throughput and durability.

Key Features

Precision Cutters & Screen
Durable Spline Shaft & Gears
Active Shaft Cleaning
Consistent Particle Output
Planetary Reducer

Request a Quote Download Brochure

Established 1918 · Made in USA · Livingston, NJ

TASKMASTER® QS3200

Get a Quote

Product Overview

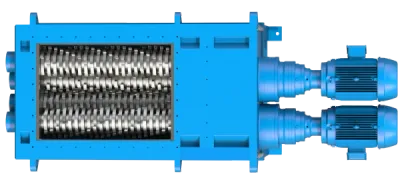

Efficient Size Reduction

Cutting System: Quad Shaft with Precision Cutters
Drive Type: Planetary Reducer
Features: Active Shaft Cleaning, Sizing Screen, Low-Speed High-Torque Operation
Applications: Aluminum cans, Asphalt, Cardboard, Batteries, Chemical and electronic waste, Hazardous medical waste, Plastics, Playground surfaces, Rubber, Solid or bulky waste, Textiles, Wood

The QS3200 is designed to meet a wide range of shredding requirements, offering high power, substantial throat openings, and robust construction for consistent particle size output. This shredder incorporates several advanced features, such as hardened precision cutters, planetary reducers, an optional stand and hopper, and bulk feed capability. The QS3200’s design prioritizes exceptional performance and reliability, utilizing premium components and superior engineering to ensure optimal functionality.

View full specifications

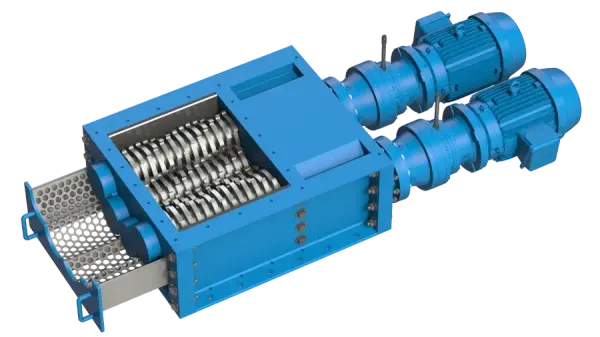

Applications

This shredder offers remarkable versatility, making it ideal for processing a wide array of materials including aluminum cans, asphalt, cardboard, batteries, chemical and electronic waste, hazardous medical waste, plastics, playground surfaces, rubber, solid or bulky waste, textiles, wood, and more. Its design prioritizes efficient operation with minimal noise, dust, and heat emissions, making it a top choice for diverse industrial shredding needs.

‍

Dimensions

MODEL NO.	QS3230	QS3242	QS3254
Dimensions
A. Input Width	32″(813 MM)	32″(813 MM)	32″(813 MM)
B. Input Length	30″(762 MM)	42″(1067 MM)	54″(1372 MM)
C. Height	22″(559 MM)	22″(559 MM)	22″(559 MM)
D. Overall Width	45″(1143 MM)	45″(1143 MM)	45″(1143 MM)
E. Overall Length	113″(2870 MM)	125″(3175 MM)	137″(3480 MM)
F. Overall Height	94″(2388 MM)	94″(2388 MM)	94″(2388 MM)
Specifications
Power (Min/Max)	30–60 HP(22–45 kW)	30–60 HP(22–45 kW)	30–60 HP(22–45 kW)
Number of Motors	2	2	2
Weight	9,000 lbs.(4082 kg)	10,000 lbs.(4536 kg)	11,000 lbs.(4989 kg)

* All data provided above is for reference only. Please contact factory for certified drawings and other available sizes.

Technical Specifications

Cutting System: Quad Shaft with Precision Cutters
Drive Type: Planetary Reducer
Features: Active Shaft Cleaning, Sizing Screen, Low-Speed High-Torque Operation
Applications: Aluminum cans, Asphalt, Cardboard, Batteries, Chemical and electronic waste, Hazardous medical waste, Plastics, Playground surfaces, Rubber, Solid or bulky waste, Textiles, Wood
