Spherical rotor handles higher flows than any other
The Super Shredder® is a high-flow inline macerator that uses a spherical rotor design to reduce wastewater solids into fine particles, protecting pumps and downstream equipment.
Established 1918 · Made in USA · Livingston, NJ
Product Overview
The Franklin Miller Super Shredder® is a powerhouse in waste management, delivering a multitude of operational benefits:
With these advantages, the Super Shredder not only improves the functionality of waste management systems but also contributes to the overall reliability and cost-effectiveness of the operations it supports.
Customize this product for your application
The SUPER SHREDDER utilizes a low speed and high torque action to chop, grind and shred solids into fine bits that can be easily processed by downstream equipment. Its innovative open-center spherical rotor design maintains a high percentage of open area—making this unit practically invisible to the flow. In fact, it can handle higher flows than any other inline grinder available. As the rotating cutting edges precisely intermesh with stationary cutters at close clearance, solids are finely reduced with a scissor-like action. This unique design effectively handles round, even-shaped solids as well as irregular objects.
The SUPER SHREDDER, coupled with Franklin Miller Chrome Boride Hardfacing, makes it excellent for long life in abrasive service.
| Model No. | HP (kW) | Pipe/Flange Size | Flange CL to Base | Flange CL to Top | Overall Height | CL to Near Edge | CL to Far Edge | Overall Width | GPM (l/s) |
|---|---|---|---|---|---|---|---|---|---|
| SS4000 | 3(2.2 kW) | 4″(100mm) | 7.125″(181mm) | 19.5″(495mm) | 41.5″(1054mm) | 3.5″(89mm) | 7″(178mm) | — | 350 gpm(22 l/s) |
| SS4-8000 | 3(2.2 kW) | 4″(100mm) | 8.44″(214mm) | 23.75″(603mm) | 45″(1143mm) | 4″(100mm) | 8″(203mm) | 24″**(610mm) | 400 gpm(25 l/s) |
| SS6-8000 | 5(3.7 kW) | 6″(150mm) | 8.44″(214mm) | 23.75″(603mm) | 49.25″(1251mm) | 4″(100mm) | 8″(203mm) | 26″*(660mm) | 800 gpm(50 l/s) |
| SS8000 | 5(3.7 kW) | 8″(200mm) | 8.44″(214mm) | 23.75″(603mm) | 49.25″(1251mm) | 4″(102mm) | 8″(203mm) | — | 1200 gpm(76 l/s) |
| SS1000 | 7.5(5.6 kW) | 10″(250mm) | 9.125″(232mm) | 25″(635mm) | 52.875″(1343mm) | 8″(203mm) | 16″(406mm) | — | 2200 gpm(139 l/s) |
| SS1200 | 10(7.5 kW) | 12″(300mm) | 11.56″(294mm) | 32.125″(816mm) | 61.5″(1562mm) | 6″(152mm) | 12″(305mm) | — | 3000 gpm(189 l/s) |
| SS1600 | 10(7.5 kW) | 16″(406mm) | 15.31″(389mm) | 40.44″(1027mm) | 69.875″(1775mm) | 8″(203mm) | 16″(406mm) | — | 4800 gpm(303 l/s) |
| SS1800 | 15(11 kW) | 18″(450mm) | 16.75″(426mm) | 42.56″(1081mm) | 74.875″(1902mm) | 9″(229mm) | 18″(450mm) | — | 5700 gpm(360 l/s) |
| SS2400 | 20(15 kW) | 24″(600mm) | 21.625″(549mm) | 55.625″(1413mm) | 91.19″(2316mm) | 12″(300mm) | 24″(600mm) | — | 9200 gpm(580 l/s) |
See It in Action

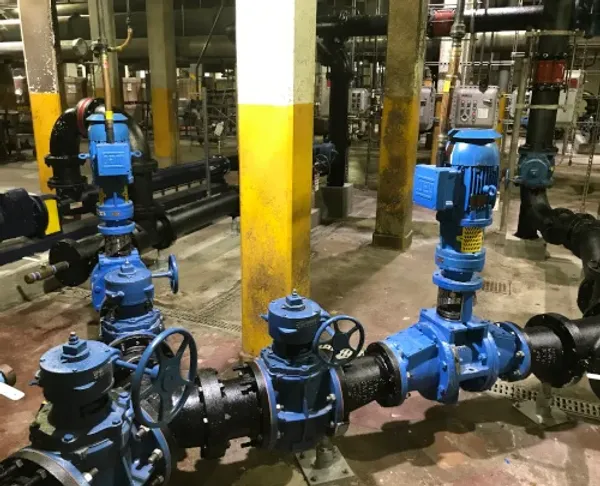

The SUPER SHREDDER easily installs into straight-through pipe systems via 150 lb. flanges. It quickly goes to work reducing solids such as wood, rags, sludge, wipes, paper and plastics. The SUPER SHREDDER stops pumps and valves from ragging and plugging, protects filter presses from expensive punctures and incomplete dewatering and protects centrifuge operation. It can process waste sludge, agglomerates, oil solids, animal waste, paint sludge, pulp and paper, tannery waste, fish scrap, dredge and more.
Our engineers have over a century of experience matching equipment to applications. Tell us about your process and we'll recommend the best fit.
Applications & Usage
Franklin Miller Inc.'s range of innovative dairy wastewater management solutions. From rotary drum screens to advanced grinders, our equipment ensures efficient processing, regulatory compliance, and protection for downstream systems in dairy facilities
Boost your dredging operations with Franklin Miller grinders, offering efficient debris reduction and protection for dredging pumps. Explore our solutions!
Franklin Miller's equipment helps meat processing facilities manage high volumes of wastewater laden with fats, oils, grease, and solids.
Franklin Miller has a multitude of inline processors suitable to handle the complex demands of oil and gas applications. The unique needs pertaining to the extraction, refining, and transporting of petroleum products can be easily handled by Franklin Miller grinders.
Franklin Miller Inline sludge shredders and grinders are used by wastewater treatment plants for reducing oversized solids in channels and pipelines.
Franklin Miller manufactures a wide range of wastewater treatment equipment including grinders and screens. Our equipment is engineered for reliability and simplicity.
